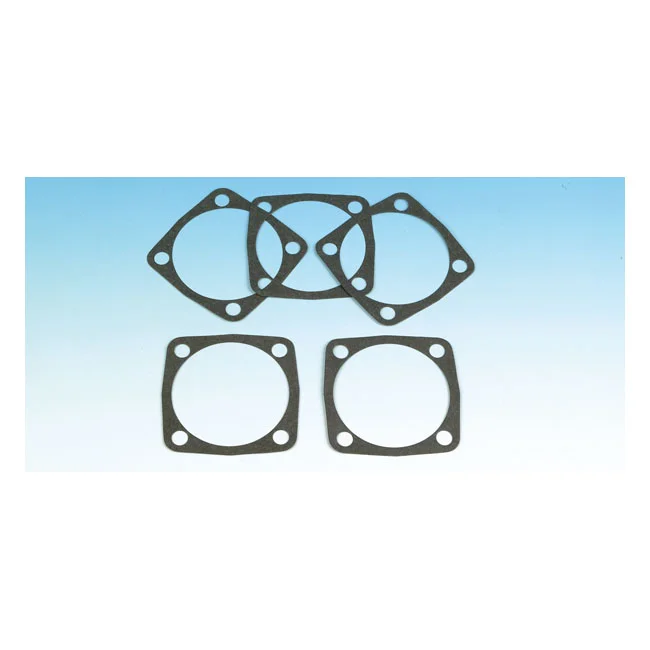

16774-72-R Gasket cylinder base FR/RR. .020" paper
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- James Gaskets
- Part Number
- 16774-72-R
- OEM Reference
- 16774-72R
- Pack Quantity
- Pack of 10
- Category
- Cylinder Base Gaskets
- VAT Rate
- 20%
About This Product
When you are working on a high-performance XR750, you need a cylinder base gasket that can handle the pressure. These James Gaskets fiber-reinforced paper gaskets are .020 inches thick with a final crush of .016 inches, providing a dependable seal for your top end. They are a high-quality replacement for OEM 16774-72R and are sold in a pack of ten. These are specifically designed to fit 1972 and later XR750 models. Using a quality paper gasket like this ensures you do not have to worry about base leaks after a rebuild, keeping your motor clean and running strong on the track or the street.
Manufacturer part number: 16774-72-R.
Fitment
13 models72-up XR750
Cafe Racer 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1978 | Sportster 1000 XLCR-1000 |
Roadster 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Sportster 1000 XLS-1000 |
Sportster 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975–1980 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1981–1985 | Sportster 1000 XLH |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLH-1000 |
| Harley-Davidson | 1981–1985 | Sportster Roadster 1000 XLS |
| Harley-Davidson | 1983–1985 | Sportster Roadster 1000 XLX |
| Harley-Davidson | 1975–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1979 | Sportster XLCH-1000 |
| Harley-Davidson | 1983–1984 | Sportster XR-1000 |
XLT Touring 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1980 | Sportster 1000 XLT-1000 |
XR-750 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1976–1979 | Sportster XR-750 |
55CI (883CC) OHV 4 Cycle-Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | Sportster Standard XLH |
