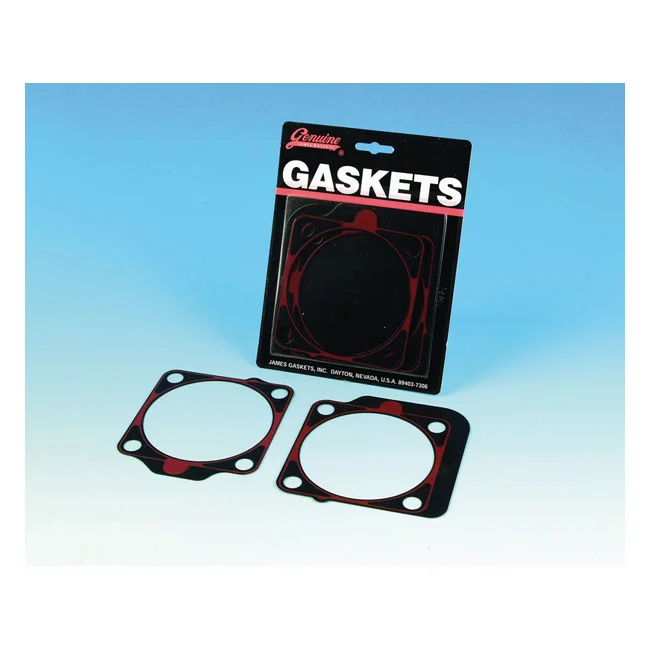

16776-63-X1 James Gaskets Cylinder base gasket set. .022" RCM for Harley-Davidson
incl. VAT
Chapter members save 11% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- James Gaskets
- Part Number
- 16776-63-X1
- OEM Reference
- 16776-63
- Pack Quantity
- Sold as pr
- Category
- Cylinder Base Gaskets
- VAT Rate
- 20%
About This Product
James Gaskets cylinder base gasket set. Rubber Coated Metal construction, 0.022 inch thick. Replaces OEM 16776-63 and 16779-63. Fits 1963 to 1984 Big Twin. Sold as a set. Clean the cases and cylinder deck thoroughly before fitting. Torque the base nuts in stages. Do not over-tighten or the gasket will squeeze out past the sealing surface. Check the deck is flat.
Manufacturer part number: 16776-63-X1.
Fitment
50 models63-84 Big Twin
FL Shovel 24 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1970–1974 | Electra Glide FL-1200 |
| Harley-Davidson | 1967–1969 | Electra Glide FLB-1200 |
| Harley-Davidson | 1966 | Electra Glide FLFB-1200 |
| Harley-Davidson | 1978–1983 | Electra Glide FLH |
| Harley-Davidson | 1970–1978 | Electra Glide FLH-1200 |
| Harley-Davidson | 1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1968 | Electra Glide FLHB-1200 |
| Harley-Davidson | 1975 | Electra Glide FLHF |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1983–1984 | Electra Glide FLHT |
| Harley-Davidson | 1984 | FLH Police 80 FLH |
| Harley-Davidson | 1979 | Glide Classic FLHC-80 |
| Harley-Davidson | 1983–1984 | Glide Classic FLHT |
| Harley-Davidson | 1975 | Glide Police FL |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1979–1980 | Police FLH 80 FLHP-80 |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1979 | Touring Electra Glide Classic FLHC-80 |
| Harley-Davidson | 1983–1984 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1984 | Touring Electra Glide FLH |
| Harley-Davidson | 1979 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Sport FLHS-80 |
FX Shovel 12 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1984 | FX Low Rider FXSB |
| Harley-Davidson | 1984 | FX Super Glide FXE |
| Harley-Davidson | 1976–1979 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1977–1978 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
| Harley-Davidson | 1979 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
| Harley-Davidson | 1971–1973 | Super Glide FX-1200 |
| Harley-Davidson | 1974–1975 | Super Glide FXE-1200 |
FXR 4 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1982–1984 | FXR Low Glide FXRS |
| Harley-Davidson | 1983 | FXR Super Glide FXR |
| Harley-Davidson | 1984 | FXR Touring FXRDG |
| Harley-Davidson | 1983–1984 | FXR Touring FXRT |
Panhead 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1963–1964 | Duo Glide FL-1200 |
| Harley-Davidson | 1963 | Duo Glide FLH-1200 |
| Harley-Davidson | 1965 | Electra Glide FLB-1200 |
Softail 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1984 | Softail Standard FXST |
Touring 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1982–1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1979–1984 | Tour Glide FLT |
| Harley-Davidson | 1981–1984 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1980–1983 | Touring Tour Glide FLT |
