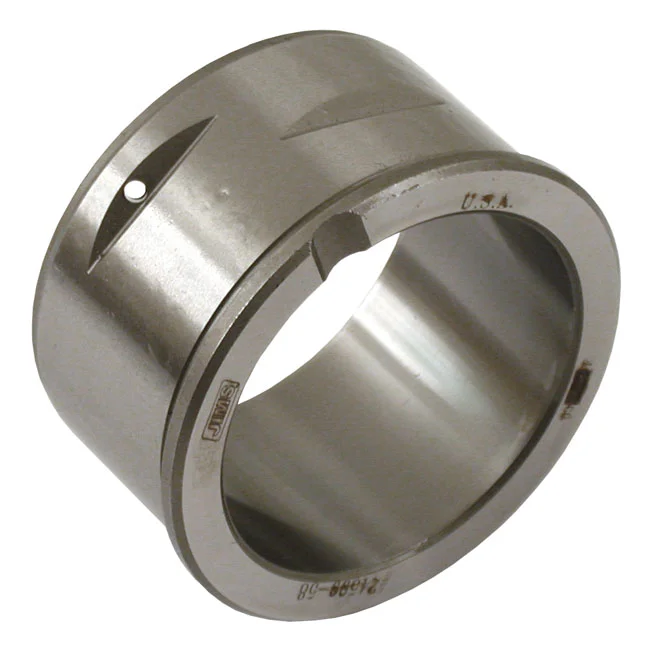

24601-5832 Pinion shaft bushing. +.032"
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Jims
- Part Number
- 24601-5832
- OEM Reference
- —
- Pack Quantity
- Sold as ea
- Category
- Crankcase Bushings
- VAT Rate
- 20%
About This Product
When a Big Twin crankcase has significant wear in the pinion bushing bore, this JIMS plus .032 inch oversized bushing is the heavy-duty solution you need. It is designed to fit 1957 to 1978 Big Twin models and provides a massive increase over the standard 2.1270 inch outer diameter. This allows a machinist to bore out a damaged case and press in a fresh, secure steel bushing. Complete with locking detents to prevent rotation, this part is essential for saving vintage cases that might otherwise be scrapped. Like all JIMS components, it is machined to exacting standards to ensure the pinion shaft runs true, maintaining critical engine timing and oiling performance.
Manufacturer part number: 24601-5832.
Fitment
11 models57-78 Big Twin
Electra Glide 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH 80 FLH-80 |
| Harley-Davidson | 1975–1978 | Electra Glide FLH-1200 |
| Harley-Davidson | 1975 | Electra Glide FLHF |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1978 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
Low Rider 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1978 | FX Super Glide FXS-1200 |
Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975 | Glide Police FL |
Super Glide 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1976–1978 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
74CI (1200CC) OHV Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH |
