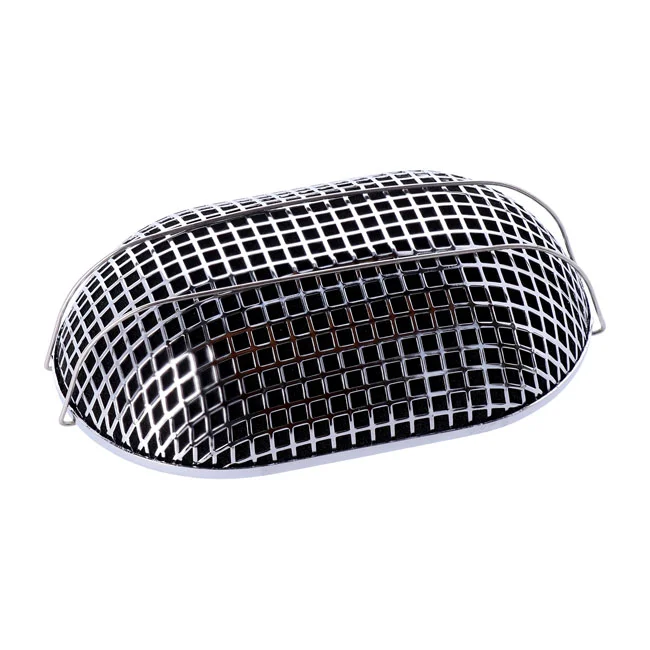

509317 Breather style air cleaner assembly, oval. Chrome
Fits: 90-17Big Twin; 88-22 XL Sportster. …
90-17Big Twin; 88-22 XL Sportster. With CV or Delphi inj. (Excl. e-throttle models)
£82.78 SAVE £12.42 (15%)
£70.36
incl. VAT
Available to Order
Stock updated: today at 4:31 am JOIN IRON STABLE — SAVE 15%
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Part #: 509317
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 509317
- OEM Reference
- 509317
- Pack Quantity
- Each
- Category
- Aircleaner Assemblies
- VAT Rate
- 20%
About This Product
This chrome oval breather-style air cleaner assembly is a great way to give your modern Harley a classic performance aesthetic. Featuring a steel mesh design, it measures approximately 7 inches wide, 4.5 inches high, and 2-1/8 inches deep. It is designed to fit 1990 to 2017 Big Twin models and 1988 to 2022 Sportsters equipped with CV carburetors or Delphi fuel injection, excluding electronic throttle models. Installation requires a suitable air cleaner support bracket and headvent breather kit. This assembly uses a foam filter element and is identified by MCS part number 509317.
Manufacturer part number: 509317.
Fitment
106 models90-17Big Twin; 88-22 XL Sportster. With CV or Delphi inj. (Excl. e-throttle models)
CVO/Custom 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1999 | CVO Dyna Super Glide FXR2 |
Dyna 36 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2006 | Dyna 35th Anv Super Glide FXD35 |
| Harley-Davidson | 1992 | Dyna Daytona FXDB |
| Harley-Davidson | 2008–2017 | Dyna Fat Bob FXDF |
| Harley-Davidson | 2012–2017 | Dyna Fat Bob FXDF 103 |
| Harley-Davidson | 1993–2017 | Dyna Low Rider FXDL |
| Harley-Davidson | 2014–2017 | Dyna Low Rider FXDL 103 |
| Harley-Davidson | 2004–2006 | Dyna Low Rider FXDLI |
| Harley-Davidson | 2016 | Dyna Low Rider S FXDLS |
| Harley-Davidson | 2007–2017 | Dyna Street Bob FXDB |
| Harley-Davidson | 2014–2017 | Dyna Street Bob FXDB 103 |
| Harley-Davidson | 2013 | Dyna Street Bob FXDBA |
| Harley-Davidson | 2013 | Dyna Street Bob FXDBA 103 |
| Harley-Davidson | 2015 | Dyna Street Bob FXDBB |
| Harley-Davidson | 2014–2015 | Dyna Street Bob FXDBB 103 |
| Harley-Davidson | 2006 | Dyna Street Bob FXDBI |
| Harley-Davidson | 2013–2016 | Dyna Street Bob FXDBP 103 |
| Harley-Davidson | 2016 | Dyna Street Bob Limited FXDBC |
| Harley-Davidson | 2016 | Dyna Street Bob Limited FXDBC 103 |
| Harley-Davidson | 1991 | Dyna Sturgis FXDB |
| Harley-Davidson | 1995–1996 | Dyna Super Glide Convertible FXDS |
| Harley-Davidson | 2013 | Dyna Super Glide Custom Anv FXDC |
| Harley-Davidson | 2005–2014 | Dyna Super Glide Custom FXDC |
| Harley-Davidson | 2014 | Dyna Super Glide Custom FXDC 103 |
| Harley-Davidson | 2005–2006 | Dyna Super Glide Custom FXDCI |
| Harley-Davidson | 1995–2010 | Dyna Super Glide FXD |
| Harley-Davidson | 2004–2006 | Dyna Super Glide FXDI |
| Harley-Davidson | 1999–2005 | Dyna Super Glide Sport FXDX |
| Harley-Davidson | 2004–2005 | Dyna Super Glide Sport FXDXI |
| Harley-Davidson | 2012–2016 | Dyna Switchback FLD |
| Harley-Davidson | 2012–2016 | Dyna Switchback FLD 103 |
| Harley-Davidson | 2008 | Dyna Wide Glide 105th Anv FXDWG |
| Harley-Davidson | 1993–2016 | Dyna Wide Glide FXDWG |
| Harley-Davidson | 2012–2017 | Dyna Wide Glide FXDWG 103 |
| Harley-Davidson | 2004–2006 | Dyna Wide Glide FXDWGI |
| Harley-Davidson | 2017 | Low Rider FXDL 103 |
| Harley-Davidson | 1992 | Super Glide Custom FXDC |
Dyna Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2001–2004 | Dyna Defender FXDP |
FXR 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1990 | FXR Convertible FXRS |
| Harley-Davidson | 1990 | FXR Low Glide FXRS |
| Harley-Davidson | 1990 | FXR Super Glide FXR |
| Harley-Davidson | 1991–1992 | Low Rider Convertible FXRS |
| Harley-Davidson | 1991–1992 | Low Rider FXRS |
| Harley-Davidson | 1991–1994 | Super Glide FXR |
Police 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1991–1995 | Electra Glide Standard Police (Fairing) FLHTP |
| Harley-Davidson | 1991–1995 | Electra Glide Standard Police (Windshield) FLHTP |
| Harley-Davidson | 1996 | Electra Glide Standard Police FLHTP |
| Harley-Davidson | 1997–1999 | Electra Glide Standard Police FLHTPI |
| Harley-Davidson | 1996–1999 | Road King Police FLHP |
| Harley-Davidson | 1996–1999 | Road King Police FLHPI |
Softail 7 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1991–1999 | Fat Boy FLSTF |
| Harley-Davidson | 1993–1996 | Heritage Softail Nostalgia FLSTN |
| Harley-Davidson | 1997–1999 | Heritage Springer FLSTS |
| Harley-Davidson | 1999 | Night Train FXSTB |
| Harley-Davidson | 1990 | Softail Fat Boy FLSTF |
| Harley-Davidson | 1990 | Softail Heritage FLST |
| Harley-Davidson | 1995–1997 | Springer Softail FXSTSB |
Sportster 36 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2017 | 1200 Custom Limited B XL1200CB |
| Harley-Davidson | 2017–2020 | 1200 Custom XL1200C |
| Harley-Davidson | 2018–2020 | 1200 Roadster XL1200CX |
| Harley-Davidson | 2007 | 50th Anv Sportster XL50 |
| Harley-Davidson | 2011–2015 | 883 Roadster XL883R |
| Harley-Davidson | 2018 | Forty-Eight Anniversary XL1200X |
| Harley-Davidson | 2018–2020 | Forty-Eight Special XL1200XS |
| Harley-Davidson | 2010–2022 | Forty-Eight XL1200X |
| Harley-Davidson | 2018–2021 | Iron 1200 XL1200NS |
| Harley-Davidson | 2009–2022 | Iron 883 XL883N |
| Harley-Davidson | 2007–2012 | Nightster XL1200N |
| Harley-Davidson | 2016–2017 | Roadster XL1200CX |
| Harley-Davidson | 2012–2016 | Seventy-Two XL1200V |
| Harley-Davidson | 2013 | Sportster 1200 Custom Anv XL1200C |
| Harley-Davidson | 2013–2016 | Sportster 1200 Custom Limited A XL1200CA |
| Harley-Davidson | 2016 | Sportster 1200 Custom Limited A XL1200CB |
| Harley-Davidson | 2013–2015 | Sportster 1200 Custom Limited B XL1200CB |
| Harley-Davidson | 1996–2016 | Sportster 1200 Custom XL1200C |
| Harley-Davidson | 2011–2016 | Sportster 1200 Custom XL1200CP |
| Harley-Davidson | 2006–2011 | Sportster 1200 Low XL1200L |
| Harley-Davidson | 1996–2003 | Sportster 1200 Sport XL1200S |
| Harley-Davidson | 1990–2003 | Sportster 1200 XL1200 |
| Harley-Davidson | 1988–1989 | Sportster 1200 XLH-1200 |
| Harley-Davidson | 1998–2010 | Sportster 883 Custom XL883C |
| Harley-Davidson | 1990–1995 | Sportster 883 Deluxe XL883DLX |
| Harley-Davidson | 1988–1989 | Sportster 883 Deluxe XLH-883DLX |
| Harley-Davidson | 1990–1995 | Sportster 883 Hugger XL883HUG |
| Harley-Davidson | 1988–1989 | Sportster 883 Hugger XLH-883HUG |
| Harley-Davidson | 2010–2011 | Sportster 883 Low XL883L |
| Harley-Davidson | 1990–1995 | Sportster 883 XL883 |
| Harley-Davidson | 1988–1989 | Sportster 883 XLH-883 |
| Harley-Davidson | 2002–2010 | Sportster 883R XL883R |
| Harley-Davidson | 2005–2009 | Sportster XL883 Low XL883L |
| Harley-Davidson | 2014–2020 | Superlow 1200T XL1200T |
| Harley-Davidson | 2016 | Superlow 883 XL883L |
| Harley-Davidson | 2012–2020 | Superlow XL883L |
Super Glide 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1997–1999 | Dyna Super Glide Convertible FXDS |
| Harley-Davidson | 1993 | Super Glide Convertible FXRS |
Touring 11 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1996–1999 | Electra Glide Classic FLHTCI |
| Harley-Davidson | 1998–1999 | Road Glide FLTR |
| Harley-Davidson | 1998–1999 | Road Glide FLTRI |
| Harley-Davidson | 1998–1999 | Road King Classic FLHRCI |
| Harley-Davidson | 1993–1999 | Road King FLHR |
| Harley-Davidson | 1996–1997 | Road King FLHRI |
| Harley-Davidson | 1991–1995 | Tour Glide Ultra Classic FLTCU |
| Harley-Davidson | 1996 | Tour Glide Ultra Classic FLTCUI |
| Harley-Davidson | 1990 | Touring Tour Glide Classic Ultra FLTCU |
| Harley-Davidson | 1991–1997 | Ultra Classic FLHTCU |
| Harley-Davidson | 1995–1999 | Ultra Classic FLHTCUI |
