8016-4 Dash mount kit. Chrome Acorn
Fits: 77-84 FXS; FXEF; FXS-80; FXEF-80; F…
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Colony
- Part Number
- 8016-4
- OEM Reference
- 70902-77
- Pack Quantity
- Sold as a set
- Category
- Dash Misc
- VAT Rate
- 20%
About This Product

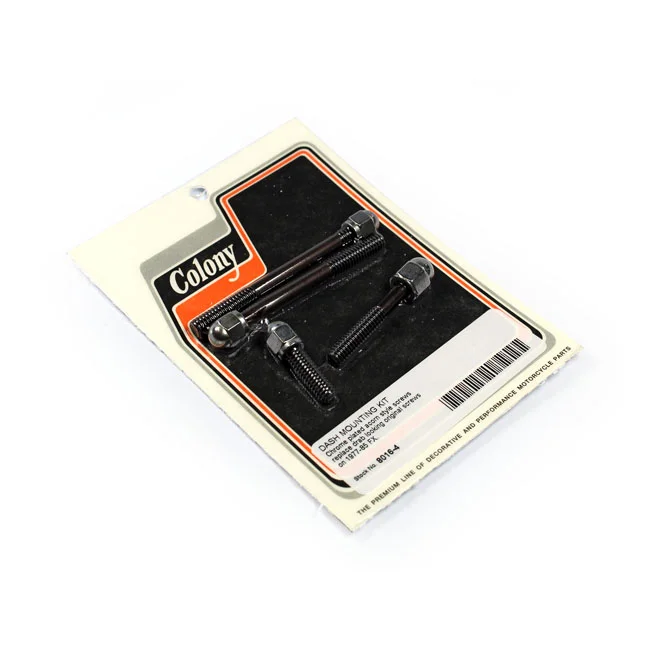

Colony chrome acorn dash mount kit fits 1977 to 1984 FXS, FXEF, FXB, and FXSB models, plus late 1984 FXE-80 models with the dual gauge dash. It is the hardware for mounting the Low Rider dual gauge dash panel to the fuel tank. The kit includes chrome acorn nuts. Sold as a set. It replaces OEM number 70902-77. Do not overtighten and crack the tank tabs. Check the thread pitch before you start.
Manufacturer part number: 8016-4.
Fitment
16 models77-84 FXS; FXEF; FXS-80; FXEF-80; FXB; FXSB; L1984 FXE-80 with dual gauge dash
Low Rider 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1979 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
Softail 7 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1983–1984 | FX Low Rider FXSB |
| Harley-Davidson | 1981 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1981–1984 | FX Super Glide FXE |
| Harley-Davidson | 1981–1982 | FX Super Glide FXS |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
Super Glide 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1976–1980 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1983–1984 | FX Super Glide FXS-80 |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1980 | Super Glide B80 FXB-80 |
Wide Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | FX Wide Glide FXWG-80 |
