ILL-01-A Illuminator Plug ''n Play Run-Turn-Brake module
Fits: 96-10 Softail (incl. FXSTD); 97-13 …
incl. VAT
Chapter members save 15% · Sign in for member pricing
Usually dispatched within 3 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Badlands
- Part Number
- ILL-01-A
- OEM Reference
- —
- Pack Quantity
- Each
- Category
- Turn Signals
- VAT Rate
- 20%
About This Product

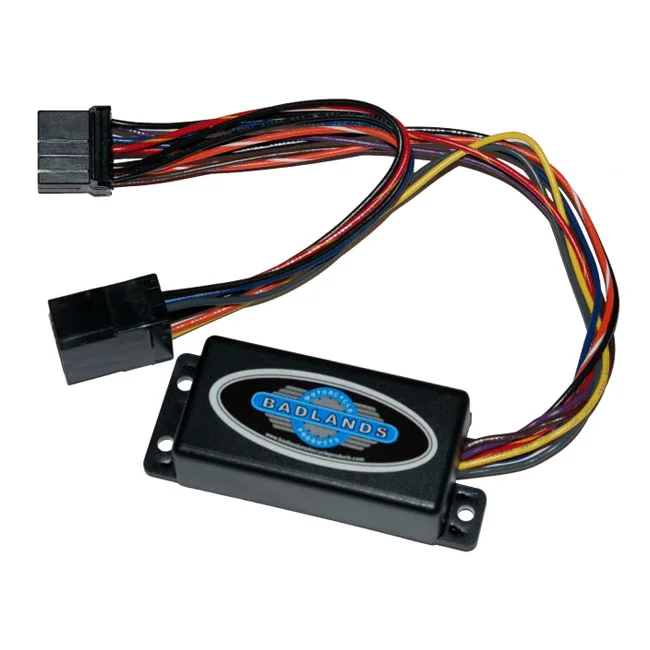

The Badlands Illuminator is a versatile plug-and-play module that transforms your rear turn signals into multi-function running lights, brake lights, and turn signals. It features a built-in load equalizer, which is essential for maintaining the correct flash rate when modifying your lighting setup. This module is designed to fit a wide range of models, including 1996–2010 Softails, 1997–2013 Touring models, 1997–2011 Dynas, and 1999–2003 XL Sportsters. It is an excellent choice for riders looking to increase rear-end visibility or simplify custom wiring projects. It can also be paired with a rear fender wiring harness if your current setup is missing or damaged, making customization much more straightforward.
Manufacturer part number: ILL-01-A.
Fitment
74 models96-10 Softail (incl. FXSTD); 97-13 FLT/Touring; 97-11 Dyna; 99-03 XL Sportster
CVO/Custom 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2008 | CVO Road King FLHRSE4 |
Dyna 15 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2006 | Dyna 35th Anv Super Glide FXD35 |
| Harley-Davidson | 2008–2011 | Dyna Fat Bob FXDF |
| Harley-Davidson | 1999–2000 | Dyna Glide Convertible FXDS-CONV |
| Harley-Davidson | 1997–2011 | Dyna Low Rider FXDL |
| Harley-Davidson | 2004–2006 | Dyna Low Rider FXDLI |
| Harley-Davidson | 2006 | Dyna Street Bob FXDBI |
| Harley-Davidson | 2005–2006 | Dyna Super Glide Custom FXDCI |
| Harley-Davidson | 1997–2010 | Dyna Super Glide FXD |
| Harley-Davidson | 2004–2006 | Dyna Super Glide FXDI |
| Harley-Davidson | 1999–2005 | Dyna Super Glide Sport FXDX |
| Harley-Davidson | 2004–2005 | Dyna Super Glide Sport FXDXI |
| Harley-Davidson | 2001–2003 | Dyna Super Glide T-Sport FXDXT |
| Harley-Davidson | 2008 | Dyna Wide Glide 105th Anv FXDWG |
| Harley-Davidson | 1997–2011 | Dyna Wide Glide FXDWG |
| Harley-Davidson | 2004–2006 | Dyna Wide Glide FXDWGI |
Dyna Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2001–2004 | Dyna Defender FXDP |
Softail 25 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2005 | Fat Boy Anv FLSTFI-ANN |
| Harley-Davidson | 1996–2010 | Fat Boy FLSTF |
| Harley-Davidson | 2001–2006 | Fat Boy FLSTFI |
| Harley-Davidson | 2005 | Fat Boy Shrine FLSTFI |
| Harley-Davidson | 1996–2010 | Heritage Softail Classic FLSTC |
| Harley-Davidson | 2001–2006 | Heritage Softail Classic FLSTCI |
| Harley-Davidson | 2005 | Heritage Softail Classic Shrine FLSTCI |
| Harley-Davidson | 2006–2010 | Heritage Softail FLST |
| Harley-Davidson | 1996 | Heritage Softail Nostalgia FLSTN |
| Harley-Davidson | 1997–2003 | Heritage Springer FLSTS |
| Harley-Davidson | 2001–2003 | Heritage Springer FLSTSI |
| Harley-Davidson | 1999–2009 | Night Train FXSTB |
| Harley-Davidson | 2001–2006 | Night Train FXSTBI |
| Harley-Davidson | 1996–2010 | Softail Custom FXSTC |
| Harley-Davidson | 2005–2010 | Softail Deluxe FLSTN |
| Harley-Davidson | 2005–2006 | Softail Deluxe FLSTNI |
| Harley-Davidson | 2000–2007 | Softail Deuce FXSTD |
| Harley-Davidson | 2001–2006 | Softail Deuce FXSTDI |
| Harley-Davidson | 1999–2010 | Softail Standard FXST |
| Harley-Davidson | 2001–2006 | Softail Standard FXSTI |
| Harley-Davidson | 2005–2007 | Springer Classic FLSTSC |
| Harley-Davidson | 2005–2006 | Springer Classic FLSTSCI |
| Harley-Davidson | 1996–2006 | Springer Softail FXSTS |
| Harley-Davidson | 1996–1997 | Springer Softail FXSTSB |
| Harley-Davidson | 2001–2006 | Springer Softail FXSTSI |
Sportster 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1999–2003 | Sportster 1200 Custom XL1200C |
| Harley-Davidson | 1999–2003 | Sportster 1200 Sport XL1200S |
| Harley-Davidson | 1999–2003 | Sportster 1200 XL1200 |
| Harley-Davidson | 1999–2003 | Sportster 883 Custom XL883C |
| Harley-Davidson | 1999–2003 | Sportster 883 XL883 |
Touring 27 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1997–2013 | Electra Glide Classic FLHTC |
| Harley-Davidson | 2011 | Electra Glide Classic FLHTC 103 |
| Harley-Davidson | 1996–2006 | Electra Glide Classic FLHTCI |
| Harley-Davidson | 1997–2010 | Electra Glide Standard FLHT |
| Harley-Davidson | 2003–2006 | Electra Glide Standard FLHTI |
| Harley-Davidson | 2013 | Electra Glide Ultra Limited Anv FLHTK |
| Harley-Davidson | 2010–2013 | Electra Glide Ultra Limited FLHTK |
| Harley-Davidson | 2011 | FB4 Road King FLHR |
| Harley-Davidson | 2010–2013 | Road Glide Custom FLTRX |
| Harley-Davidson | 2011 | Road Glide Custom FLTRX 103 |
| Harley-Davidson | 1998–2009 | Road Glide FLTR |
| Harley-Davidson | 1998–2006 | Road Glide FLTRI |
| Harley-Davidson | 2013 | Road King Anv FLHR |
| Harley-Davidson | 2007–2013 | Road King Classic FLHRC |
| Harley-Davidson | 2011 | Road King Classic FLHRC 103 |
| Harley-Davidson | 1998–2006 | Road King Classic FLHRCI |
| Harley-Davidson | 2004–2006 | Road King Custom FLHRSI |
| Harley-Davidson | 1997–2013 | Road King FLHR |
| Harley-Davidson | 2011 | Road King FLHR 103 |
| Harley-Davidson | 1996–2006 | Road King FLHRI |
| Harley-Davidson | 2006–2013 | Street Glide FLHX |
| Harley-Davidson | 2011 | Street Glide FLHX 103 |
| Harley-Davidson | 1997–2013 | Ultra Classic FLHTCU |
| Harley-Davidson | 1997–2006 | Ultra Classic FLHTCUI |
| Harley-Davidson | 2015–2016 | Ultra Classic Low FLHTCUL |
| Harley-Davidson | 2015–2016 | Ultra Classic Low Twin-Cooled FLHTCUL |
| Harley-Davidson | 2015–2019 | Ultra Limited Low FLHTKL |
