S410195117001 Gasket foot peg stud
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Athena
- Part Number
- S410195117001
- OEM Reference
- 34624-77
- Pack Quantity
- Pack of 10
- Category
- Gaskets & Seals
- VAT Rate
- 20%
About This Product

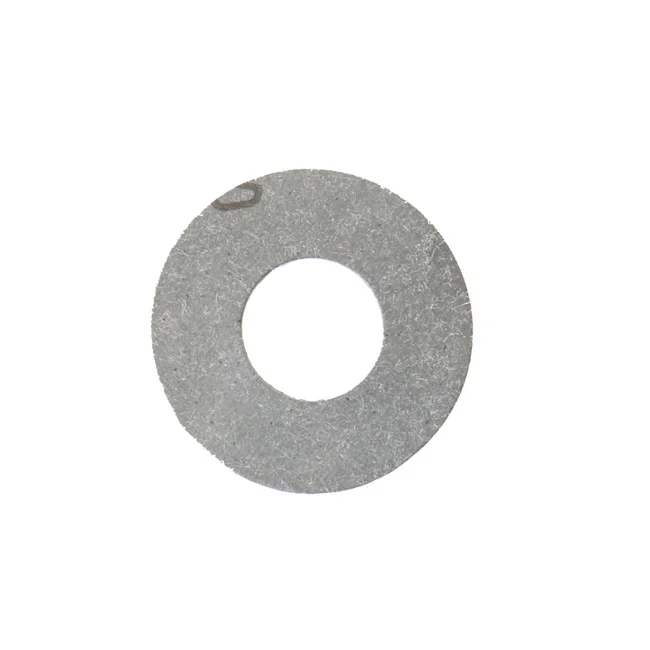

Sealing the inner primary on an older Sportster requires attention to detail, especially around the foot peg stud. This Athena gasket is designed to sit on the inside of the inner primary cover to prevent oil from weeping out around the stud. It is a precise fit for 1977 to 1990 XL Sportster models. Manufactured to high standards, it serves as a reliable replacement for OEM 34624-77. When you have the primary apart for maintenance, replacing these small seals is cheap insurance against messy leaks on your garage floor. This fiber-reinforced gasket ensures a tight, durable seal that can withstand the heat and vibration common to the Ironhead and early Evolution Sportster platforms. It is a straightforward, essential component for any primary drive service.
Manufacturer part number: S410195117001.
Fitment
18 models77-90 XL Sportster
Cafe Racer 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1978 | Sportster 1000 XLCR-1000 |
Roadster 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Sportster 1000 XLS-1000 |
Sportster 16 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1980 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1981–1985 | Sportster 1000 XLH |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLH-1000 |
| Harley-Davidson | 1986–1987 | Sportster 1100 XLH |
| Harley-Davidson | 1990 | Sportster 1200 XL1200 |
| Harley-Davidson | 1988–1989 | Sportster 1200 XLH-1200 |
| Harley-Davidson | 1990 | Sportster 883 Deluxe XL883DLX |
| Harley-Davidson | 1988–1989 | Sportster 883 Deluxe XLH-883DLX |
| Harley-Davidson | 1987–1990 | Sportster 883 Hugger XL883HUG |
| Harley-Davidson | 1988–1989 | Sportster 883 Hugger XLH-883HUG |
| Harley-Davidson | 1986–1990 | Sportster 883 XL883 |
| Harley-Davidson | 1988–1989 | Sportster 883 XLH-883 |
| Harley-Davidson | 1981–1985 | Sportster Roadster 1000 XLS |
| Harley-Davidson | 1983–1985 | Sportster Roadster 1000 XLX |
| Harley-Davidson | 1977–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1983–1984 | Sportster XR-1000 |
