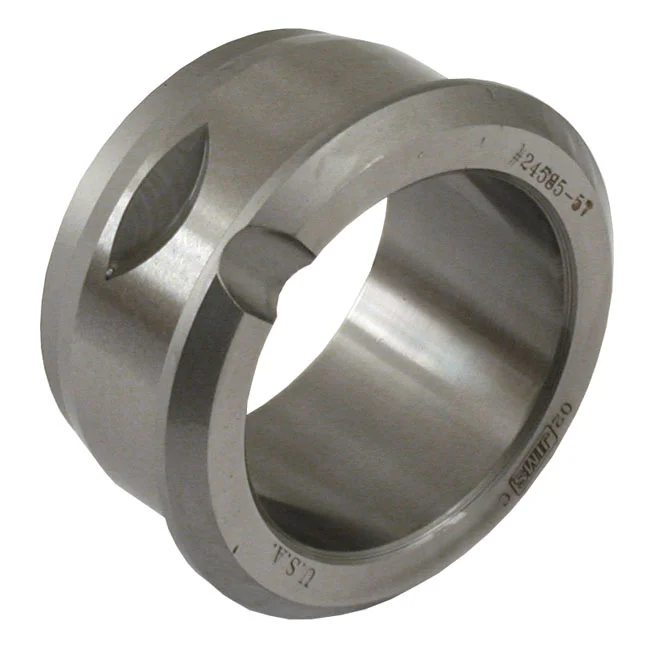

24585-57 Pinion shaft bushing. Std. size
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Jims
- Part Number
- 24585-57
- OEM Reference
- —
- Pack Quantity
- Sold as ea
- Category
- Crankcase Bushings
- VAT Rate
- 20%
About This Product
Jims standard size pinion shaft bushing. Steel. Standard outside diameter is 1.7515 inches. Fits 1957 to 1976 XL Sportster cases that have not been bored oversize. Press it into the crankcase to give the pinion shaft a proper bearing surface. Use this when you are rebuilding an Ironhead motor and you need the oiling and alignment right. The tolerances are tight and it fits as it should.
Manufacturer part number: 24585-57.
Fitment
5 models57-76 XL Sportster
Sportster 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975–1978 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1975–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1979 | Sportster XLCH-1000 |
XLT Touring 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1980 | Sportster 1000 XLT-1000 |
55CI (883CC) OHV 4 Cycle-Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | Sportster Standard XLH |
