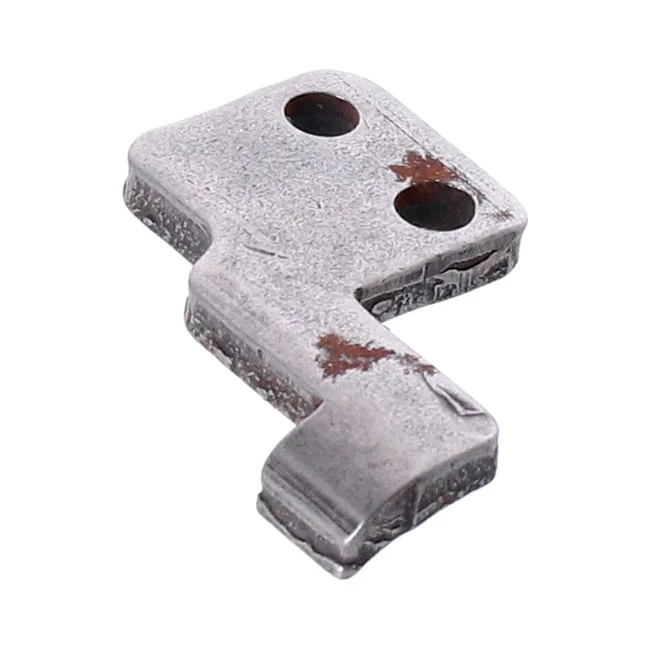

504602 Shifter pawl lifter arm, upper
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 504602
- OEM Reference
- 34507-52
- Pack Quantity
- Sold as ea
- Category
- Transmission Misc
- VAT Rate
- 20%
About This Product
MCS upper shifter pawl lifter arm for 1954–1956 KH and 1957–1990 XL Sportster models. One piece is used per gearbox. It replaces Harley-Davidson OEM 34507-52 and 35507-52A. Fit it when shifting becomes notchy or the original arm shows wear. The upper arm works in tandem with the lower lifter. Check both parts before you order. Worn edges on either piece cause lazy shifts.
Manufacturer part number: 504602.
Fitment
18 models54-56 KH; 57-90 XL Sportster
Cafe Racer 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1978 | Sportster 1000 XLCR-1000 |
Roadster 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Sportster 1000 XLS-1000 |
Sportster 15 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1981–1985 | Sportster 1000 XLH |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLH-1000 |
| Harley-Davidson | 1986–1987 | Sportster 1100 XLH |
| Harley-Davidson | 1990 | Sportster 1200 XL1200 |
| Harley-Davidson | 1988–1989 | Sportster 1200 XLH-1200 |
| Harley-Davidson | 1990 | Sportster 883 Deluxe XL883DLX |
| Harley-Davidson | 1988–1989 | Sportster 883 Deluxe XLH-883DLX |
| Harley-Davidson | 1987–1990 | Sportster 883 Hugger XL883HUG |
| Harley-Davidson | 1988–1989 | Sportster 883 Hugger XLH-883HUG |
| Harley-Davidson | 1986–1990 | Sportster 883 XL883 |
| Harley-Davidson | 1988–1989 | Sportster 883 XLH-883 |
| Harley-Davidson | 1981–1985 | Sportster Roadster 1000 XLS |
| Harley-Davidson | 1983–1985 | Sportster Roadster 1000 XLX |
| Harley-Davidson | 1983–1984 | Sportster XR-1000 |
XLT Touring 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977 | Sportster 1000 XLT-1000 |
