514656 Pinion shaft bushing. std. size
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 514656
- OEM Reference
- 25582-93
- Pack Quantity
- Each
- Category
- Pinion Shaft Bushings
- VAT Rate
- 20%
About This Product

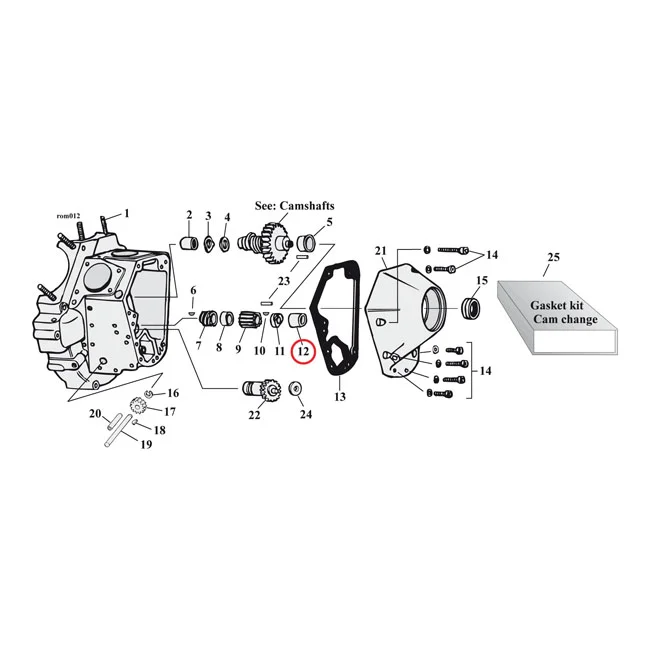

This standard-size bronze pinion shaft bushing is designed for use in the cam cover of 1993 through 1999 Big Twin engines, excluding Twin Cams. It is an OEM-style replacement for part number 25582-93. Proper bushing fitment is critical for the alignment of your pinion shaft and the overall health of your engine's timing side. For a professional installation, this bushing is designed to be removed with the JIMS 978300 tool and should be line-reamed using the JIMS 978301 tool to ensure perfect clearance. Made from high-quality bronze for excellent wear resistance, this MCS bushing is a reliable choice for any mechanic performing a cam chest overhaul on a late-model Evolution engine.
Manufacturer part number: 514656.
Fitment
42 models93-99 Big Twin (Excl. Twin Cam)
CVO/Custom 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1999 | CVO Dyna Super Glide FXR2 |
| Harley-Davidson | 1999 | CVO Dyna Super Glide FXR3 |
| Harley-Davidson | 2000 | CVO Dyna Super Glide FXR4 |
Dyna 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993 | Dyna Glide Convertible FXDS-CONV |
| Harley-Davidson | 1993–1998 | Dyna Low Rider FXDL |
| Harley-Davidson | 1995–1996 | Dyna Super Glide Convertible FXDS |
| Harley-Davidson | 1995–1998 | Dyna Super Glide FXD |
| Harley-Davidson | 1993–1998 | Dyna Wide Glide FXDWG |
FXR 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993 | FXR Sport FXRS-SP |
| Harley-Davidson | 2000 | FXR Super Glide FXR3 |
| Harley-Davidson | 1993 | Low Rider Sport Edition FXRS-SP |
| Harley-Davidson | 1993–1994 | Super Glide FXR |
| Harley-Davidson | 1993–1994 | Super Glide Low Rider FXLR |
FXR Police 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1995 | Police Low Rider FXRP |
| Harley-Davidson | 1993–1994 | Super Glide Police (Fairing) FXRP |
| Harley-Davidson | 1993–1994 | Super Glide Police (Windshield) FXRP |
Police 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993–1995 | Electra Glide Standard Police (Fairing) FLHTP |
| Harley-Davidson | 1993–1995 | Electra Glide Standard Police (Windshield) FLHTP |
Softail 9 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993–1999 | Fat Boy FLSTF |
| Harley-Davidson | 1993–1999 | Heritage Softail Classic FLSTC |
| Harley-Davidson | 1993–1996 | Heritage Softail Nostalgia FLSTN |
| Harley-Davidson | 1997–1999 | Heritage Springer FLSTS |
| Harley-Davidson | 1999 | Night Train FXSTB |
| Harley-Davidson | 1993–1999 | Softail Custom FXSTC |
| Harley-Davidson | 1999 | Softail Standard FXST |
| Harley-Davidson | 1993–1999 | Springer Softail FXSTS |
| Harley-Davidson | 1995–1997 | Springer Softail FXSTSB |
Super Glide 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1994–1998 | Dyna Super Glide Convertible FXDS |
| Harley-Davidson | 1993 | Super Glide Convertible FXRS |
Touring 13 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993–1998 | Electra Glide Classic FLHTC |
| Harley-Davidson | 1996–1998 | Electra Glide Classic FLHTCI |
| Harley-Davidson | 1993–1994 | Electra Glide Sport FLHS |
| Harley-Davidson | 1995–1998 | Electra Glide Standard FLHT |
| Harley-Davidson | 1998 | Road Glide FLTR |
| Harley-Davidson | 1998 | Road Glide FLTRI |
| Harley-Davidson | 1998 | Road King Classic FLHRCI |
| Harley-Davidson | 1993–1998 | Road King FLHR |
| Harley-Davidson | 1996–1997 | Road King FLHRI |
| Harley-Davidson | 1993–1995 | Tour Glide Ultra Classic FLTCU |
| Harley-Davidson | 1996 | Tour Glide Ultra Classic FLTCUI |
| Harley-Davidson | 1993–1997 | Ultra Classic FLHTCU |
| Harley-Davidson | 1995–1998 | Ultra Classic FLHTCUI |
