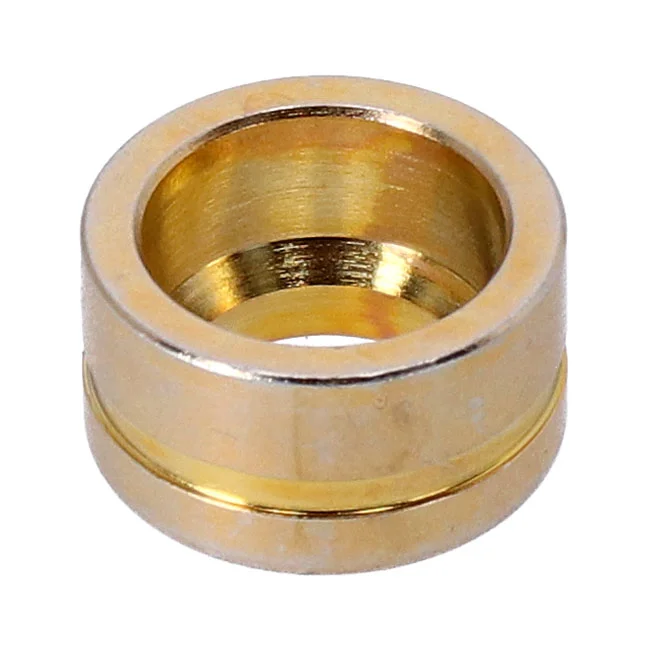

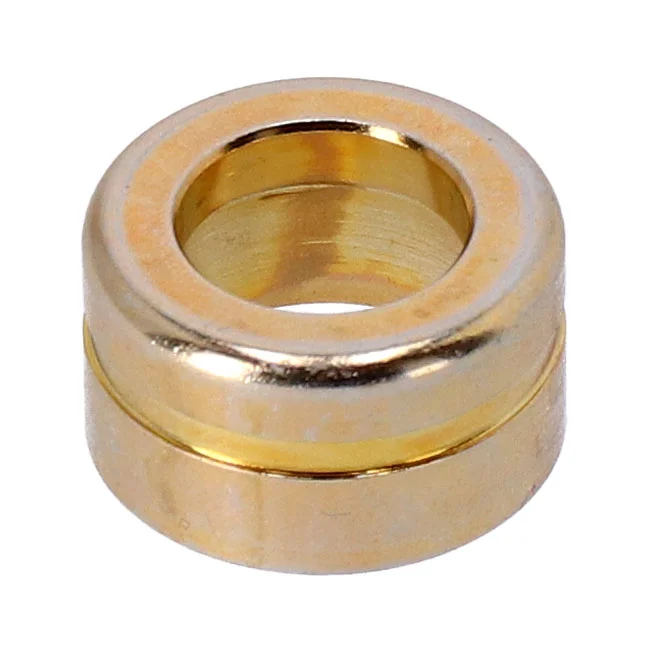

996487 Cup washer, swingarm outer rubber
incl. VAT
Chapter members save 15% · Sign in for member pricing
Usually dispatched within 3 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 996487
- OEM Reference
- 47491-89
- Pack Quantity
- Each
- Category
- Swingarms Assy
- VAT Rate
- 20%
About This Product
This cup washer is a specific hardware component used in the swingarm assembly of FXR and Touring models. It is designed to work in conjunction with the outer swingarm rubber to provide a secure and stable pivot point for the rear suspension. This part fits 1989 through 2001 FLT Touring models and 1989 through 1994 FXR models. It serves as a direct replacement for OEM reference 47491-89. Typically, one of these washers is used per side. During a rear-end overhaul, replacing these washers along with the rubbers ensures that your swingarm is properly shimmed and supported, which is critical for maintaining the legendary handling characteristics of the FXR and early touring frames.
Manufacturer part number: 996487.
Fitment
45 models89-01 FLT/Touring; 89-94 FXR
CVO/Custom 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1999 | CVO Dyna Super Glide FXR2 |
| Harley-Davidson | 1999 | CVO Dyna Super Glide FXR3 |
| Harley-Davidson | 2000 | CVO Dyna Super Glide FXR4 |
| Harley-Davidson | 2000 | CVO Road Glide FLTRSEI |
| Harley-Davidson | 2001 | CVO Road Glide FLTRSEI2 |
FXR 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1989–1990 | FXR Convertible FXRS |
| Harley-Davidson | 1989–1990 | FXR Low Glide FXRS |
| Harley-Davidson | 1989–1990 | FXR Low Rider FXLR |
| Harley-Davidson | 1989–1993 | FXR Sport FXRS-SP |
| Harley-Davidson | 1989–1990 | FXR Super Glide FXR |
| Harley-Davidson | 2000 | FXR Super Glide FXR3 |
| Harley-Davidson | 1989–1990 | FXR Touring FXRT |
| Harley-Davidson | 1991–1992 | Low Rider Convertible FXRS |
| Harley-Davidson | 1991–1992 | Low Rider Custom FXLR |
| Harley-Davidson | 1991–1992 | Low Rider FXRS |
| Harley-Davidson | 1991–1993 | Low Rider Sport Edition FXRS-SP |
| Harley-Davidson | 1991–1992 | Sport Glide FXRT |
| Harley-Davidson | 1991–1994 | Super Glide FXR |
| Harley-Davidson | 1993–1994 | Super Glide Low Rider FXLR |
FXR Police 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1984–1995 | Police Low Rider FXRP |
| Harley-Davidson | 1991–1994 | Super Glide Police (Fairing) FXRP |
| Harley-Davidson | 1991–1992 | Super Glide Police (Frg/Wnd) FXRP-FRG |
| Harley-Davidson | 1991–1992 | Super Glide Police (Frg/Wnd) FXRP-WND |
| Harley-Davidson | 1991–1994 | Super Glide Police (Windshield) FXRP |
Police 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1991–1995 | Electra Glide Standard Police (Fairing) FLHTP |
| Harley-Davidson | 1991–1995 | Electra Glide Standard Police (Windshield) FLHTP |
Super Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1993 | Super Glide Convertible FXRS |
Touring 18 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1991–2001 | Electra Glide Classic FLHTC |
| Harley-Davidson | 1996–2001 | Electra Glide Classic FLHTCI |
| Harley-Davidson | 1991–1994 | Electra Glide Sport FLHS |
| Harley-Davidson | 1995–2001 | Electra Glide Standard FLHT |
| Harley-Davidson | 1998–2001 | Road Glide FLTR |
| Harley-Davidson | 1998–2001 | Road Glide FLTRI |
| Harley-Davidson | 1998–2001 | Road King Classic FLHRCI |
| Harley-Davidson | 1993–2001 | Road King FLHR |
| Harley-Davidson | 1996–2001 | Road King FLHRI |
| Harley-Davidson | 1991–1992 | Tour Glide Classic FLTC |
| Harley-Davidson | 1991–1995 | Tour Glide Ultra Classic FLTCU |
| Harley-Davidson | 1996 | Tour Glide Ultra Classic FLTCUI |
| Harley-Davidson | 1989–1990 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1989–1990 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1989–1990 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1989–1990 | Touring Tour Glide Classic Ultra FLTCU |
| Harley-Davidson | 1991–1997 | Ultra Classic FLHTCU |
| Harley-Davidson | 1995–2001 | Ultra Classic FLHTCUI |
