2286-1 Pinion/sprocket shaft nut
Fits: Pinion shaft: 30-E81 Big Twin. Spr…
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Colony
- Part Number
- 2286-1
- OEM Reference
- 24023-36
- Pack Quantity
- Each
- Category
- Sprocket Shafts Parts
- VAT Rate
- 20%
About This Product

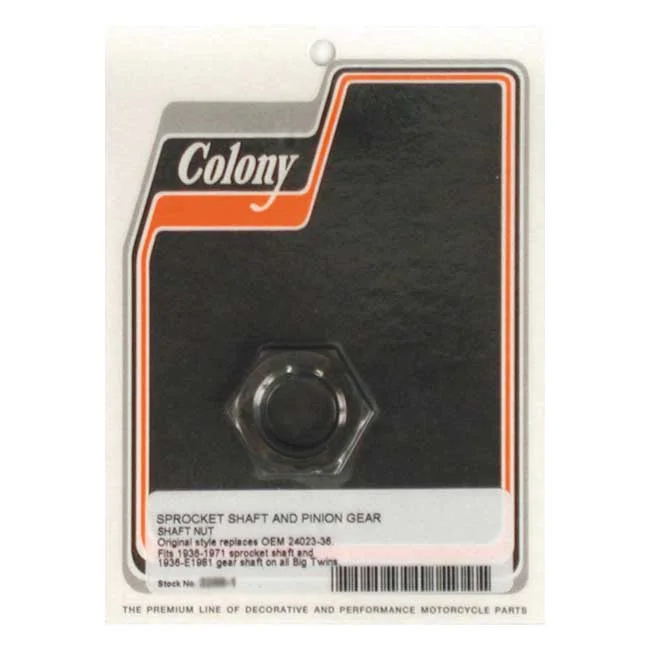

This Colony pinion and sprocket shaft nut is a critical piece of hardware for vintage Big Twin bottom ends. Featuring a 3/4-18 thread, it is designed for use on the flywheel side to ensure everything stays locked down tight. It serves as a direct replacement for OEM 24023-36. For fitment, this nut works on the pinion shaft for 1930 through early 1981 Big Twin models, and it also fits the sprocket shaft on 1930 to 1970 Big Twins. When you are rebuilding an early motor, using high-quality fasteners like these from Colony ensures the reliability and precision you need for a long-lasting engine build.
Manufacturer part number: 2286-1.
Fitment
58 modelsPinion shaft: 30-E81 Big Twin. Sprocket shaft: 30-70 Big Twin
Electra Glide 18 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH 80 FLH-80 |
| Harley-Davidson | 1975–1980 | Electra Glide FLH-1200 |
| Harley-Davidson | 1979–1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1975 | Electra Glide FLHF |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1984 | FLH Police 80 FLH |
| Harley-Davidson | 1979–1980 | Glide Classic FLHC-80 |
| Harley-Davidson | 1981–1984 | Police Electra Glide FLH-1200 |
| Harley-Davidson | 1981–1984 | Police Electra Glide FLH-80 |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Classic FHL-80 |
| Harley-Davidson | 1979 | Touring Electra Glide Classic FLHC-80 |
| Harley-Davidson | 1980 | Touring Electra Glide FL-80 |
| Harley-Davidson | 1978–1984 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Sport FLHS-80 |
FXR 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1982–1983 | FXR Low Glide FXRS |
| Harley-Davidson | 1982–1983 | FXR Super Glide FXR |
| Harley-Davidson | 1983 | FXR Touring FXRT |
Low Rider 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1979 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975 | Glide Police FL |
Police Electra Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Police FLH 80 FLHP-80 |
Softail 7 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1983–1984 | FX Low Rider FXSB |
| Harley-Davidson | 1981 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1981–1984 | FX Super Glide FXE |
| Harley-Davidson | 1981–1982 | FX Super Glide FXS |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
Super Glide 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1976–1980 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1983–1984 | FX Super Glide FXS-80 |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1980 | Super Glide B80 FXB-80 |
Tour Glide 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Tour Glide FLT |
| Harley-Davidson | 1980 | Touring Tour Glide FLT |
| Harley-Davidson | 1983 | Touring Tour Glide FLTD |
Touring 15 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1981–1983 | Electra Glide FLH |
| Harley-Davidson | 1981 | Electra Glide FLHS |
| Harley-Davidson | 1983–1984 | Electra Glide FLHT |
| Harley-Davidson | 1981 | Glide Classic FLHC |
| Harley-Davidson | 1983–1984 | Glide Classic FLHT |
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1982–1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1981–1984 | Tour Glide FLT |
| Harley-Davidson | 1981–1982 | Touring Electra Glide Classic FLHC |
| Harley-Davidson | 1983 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1984 | Touring Electra Glide FLH |
| Harley-Davidson | 1981–1984 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1983 | Touring Electra Glide Standard FLHT |
| Harley-Davidson | 1980–1982 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1981–1983 | Touring Tour Glide FLT |
Wide Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | FX Wide Glide FXWG-80 |
74CI (1200CC) OHV Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH |
