24023-36 Jims Pinion/sprocket shaft nut for Harley-Davidson
incl. VAT
Chapter members save 11% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Jims
- Part Number
- 24023-36
- OEM Reference
- 24023-36
- Pack Quantity
- Sold as ea
- Category
- Sprocket Shafts Parts
- VAT Rate
- 20%
About This Product

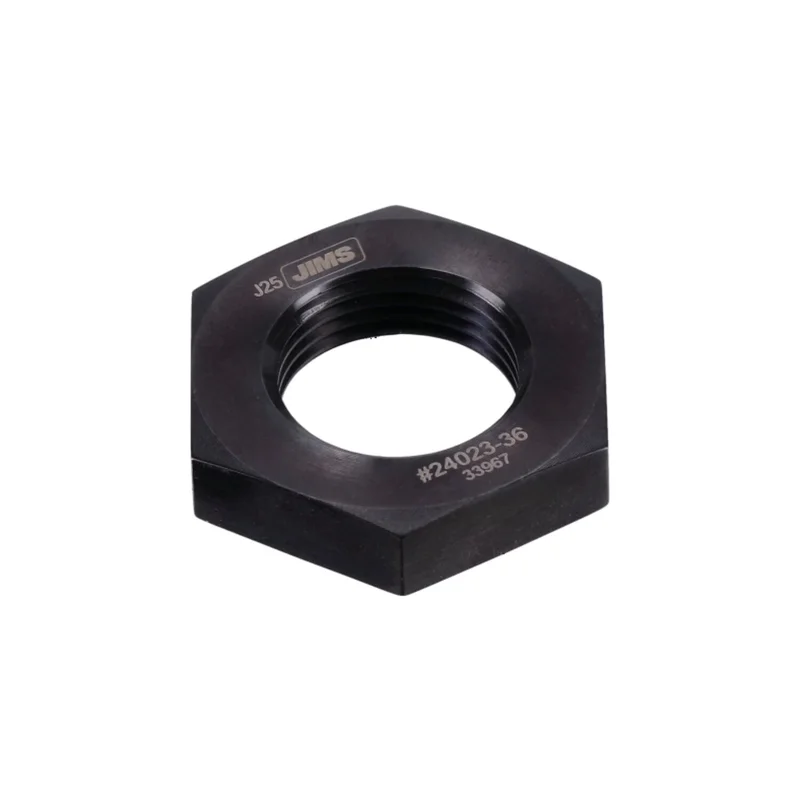

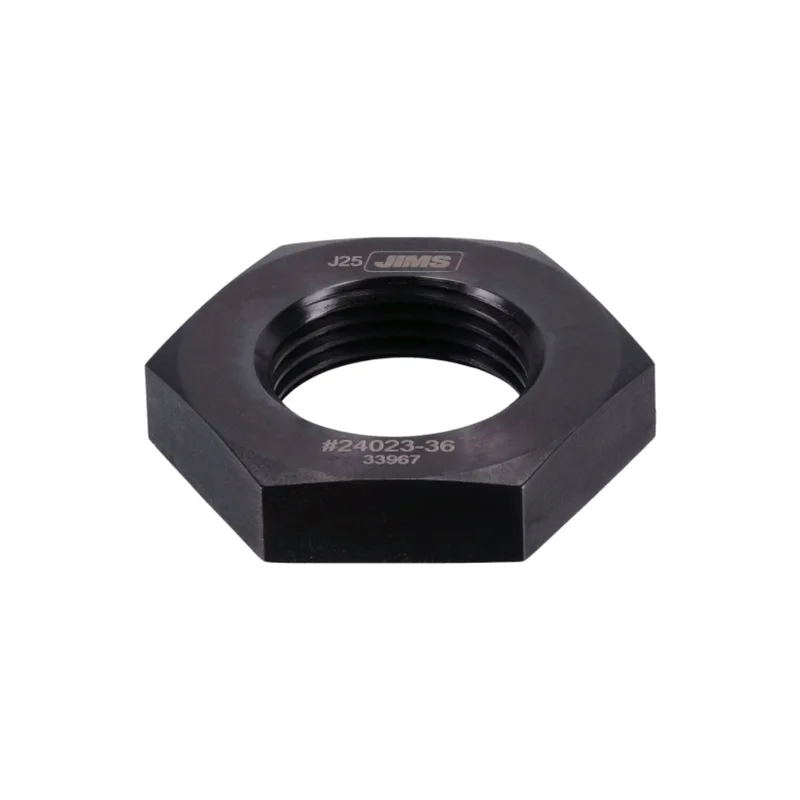

JIMS pinion and sprocket shaft nut. Thread pitch is 3/4-18. It replaces OEM 24023-36. As a pinion shaft nut it fits 1930 to early 1981 Big Twin. As a sprocket shaft nut it fits 1930 to 1970 Big Twin. Sold individually. Make sure you are fitting it to the correct side.
Manufacturer part number: 24023-36.
Fitment
87 modelsPinion shaft: 30-E81 Big Twin. Sprocket shaft: 30-70 Big Twin
Dyna 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Custom FXDG |
Electra Glide 5 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1984 | FLH Police 80 FLH |
| Harley-Davidson | 1981–1984 | Police Electra Glide FLH-1200 |
| Harley-Davidson | 1981–1984 | Police Electra Glide FLH-80 |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1982–1984 | Touring Electra Glide FLH-80 |
FL Shovel 20 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1970–1974 | Electra Glide FL-1200 |
| Harley-Davidson | 1966–1969 | Electra Glide FLB-1200 |
| Harley-Davidson | 1968 | Electra Glide FLFB-1200 |
| Harley-Davidson | 1978 | Electra Glide FLH |
| Harley-Davidson | 1978 | Electra Glide FLH 80 FLH-80 |
| Harley-Davidson | 1970–1977 | Electra Glide FLH-1200 |
| Harley-Davidson | 1979–1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1967–1969 | Electra Glide FLHB-1200 |
| Harley-Davidson | 1975 | Electra Glide FLHF |
| Harley-Davidson | 1971–1975 | Electra Glide FLHF-1200 |
| Harley-Davidson | 1968 | Electra Glide FLHFB-1200 |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1980 | Glide Classic FLHC-80 |
| Harley-Davidson | 1975 | Glide Police FL |
| Harley-Davidson | 1979–1980 | Police FLH 80 FLHP-80 |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1979 | Touring Electra Glide Classic FLHC-80 |
| Harley-Davidson | 1978–1979 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
Flathead 7 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1942 | Flathead EL-1000 |
| Harley-Davidson | 1937–1947 | Flathead U-1200 |
| Harley-Davidson | 1937–1948 | Flathead UH-1300 |
| Harley-Davidson | 1936–1947 | Flathead UL-1200 |
| Harley-Davidson | 1937–1948 | Flathead ULH-1300 |
| Harley-Davidson | 1935–1936 | Flathead VL-1200 |
| Harley-Davidson | 1936 | Flathead VLH-1300 |
FX Shovel 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1976–1979 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1977–1978 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1973–1975 | Super Glide FX-1200 |
| Harley-Davidson | 1973–1975 | Super Glide FXE-1200 |
FXR 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1982–1983 | FXR Low Glide FXRS |
| Harley-Davidson | 1983 | FXR Super Glide FXR |
| Harley-Davidson | 1983 | FXR Touring FXRT |
Knucklehead 4 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1936–1948 | Knucklehead E-1000 |
| Harley-Davidson | 1938–1948 | Knucklehead EL-1000 |
| Harley-Davidson | 1936–1947 | Knucklehead F-1200 |
| Harley-Davidson | 1936–1947 | Knucklehead FL-1200 |
Panhead 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1958–1959 | Duo Glide FL-1200 |
| Harley-Davidson | 1960–1962 | Duo Glide FLF-1200 |
| Harley-Davidson | 1963–1964 | Duo Glide FLH-1200 |
| Harley-Davidson | 1949–1952 | Hydra Glide E-1000 |
| Harley-Davidson | 1949–1952 | Hydra Glide EL-1000 |
| Harley-Davidson | 1952 | Hydra Glide ELF-1000 |
| Harley-Davidson | 1949–1952 | Hydra Glide F-1200 |
| Harley-Davidson | 1949–1957 | Hydra Glide FL-1200 |
| Harley-Davidson | 1953–1956 | Hydra Glide FLE-1200 |
| Harley-Davidson | 1953–1956 | Hydra Glide FLEF-1200 |
| Harley-Davidson | 1952–1956 | Hydra Glide FLF-1200 |
| Harley-Davidson | 1955–1957 | Hydra Glide FLH-1200 |
| Harley-Davidson | 1955–1957 | Hydra Glide FLHF-1200 |
| Harley-Davidson | 1948 | Panhead FL-1200 |
Softail 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983–1984 | FX Low Rider FXSB |
| Harley-Davidson | 1981–1984 | FX Super Glide FXE |
| Harley-Davidson | 1982 | FX Super Glide FXS |
| Harley-Davidson | 1981 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
Super Glide 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1984 | FX Super Glide FXS-80 |
| Harley-Davidson | 1980 | Super Glide B80 FXB-80 |
Tour Glide 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979 | Tour Glide FLT |
| Harley-Davidson | 1983 | Touring Tour Glide FLTD |
Touring 13 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1981–1983 | Electra Glide FLH |
| Harley-Davidson | 1981 | Electra Glide FLHS |
| Harley-Davidson | 1983–1984 | Electra Glide FLHT |
| Harley-Davidson | 1981 | Glide Classic FLHC |
| Harley-Davidson | 1983–1984 | Glide Classic FLHT |
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1982–1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1981–1984 | Tour Glide FLT |
| Harley-Davidson | 1982 | Touring Electra Glide Classic FLHC |
| Harley-Davidson | 1984 | Touring Electra Glide FLH |
| Harley-Davidson | 1981–1984 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1981 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1981 | Touring Tour Glide FLT |
Wide Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | FX Wide Glide FXWG-80 |
Planning other changes? Find your model in the bike customiser.
