24042-78 Jims Pinion gear L77-89. Yellow for Harley-Davidson
incl. VAT
Chapter members save 11% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Jims
- Part Number
- 24042-78
- OEM Reference
- 24040-78
- Pack Quantity
- Each
- Category
- Pinion Gears
- VAT Rate
- 20%
About This Product

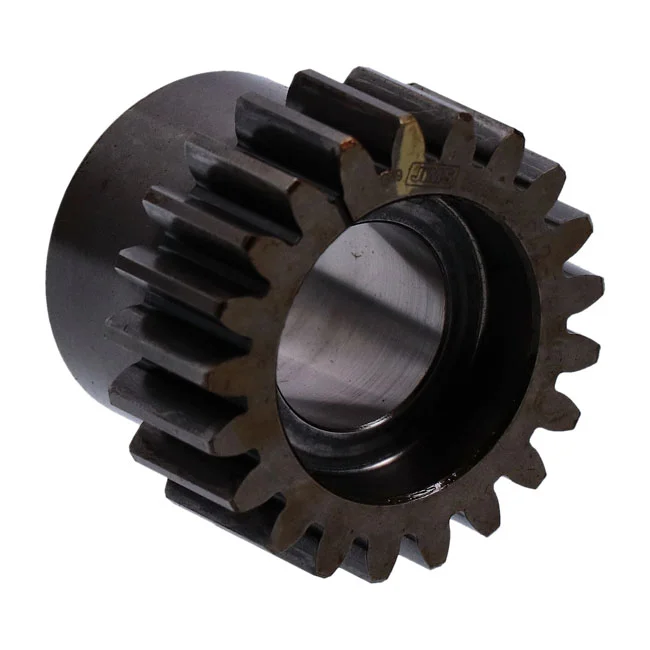

JIMS yellow pinion gear. It fits late 1977 to 1989 Big Twin models. It replaces OEM number 24042-78. Machined in the USA from aerospace-quality tool steel. Use the correct colour code to prevent premature wear and unwanted noise in the valve train. Check your lash before assembly. A loose mesh clicks. A tight mesh whines and wears the gear faces prematurely.
Manufacturer part number: 24042-78.
Fitment
65 modelsL77-89 Big Twin
FL Shovel 25 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978–1982 | Electra Glide FLH |
| Harley-Davidson | 1978 | Electra Glide FLH 80 FLH-80 |
| Harley-Davidson | 1977–1979 | Electra Glide FLH-1200 |
| Harley-Davidson | 1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1981 | Electra Glide FLHS |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1984 | Electra Glide FLHT |
| Harley-Davidson | 1981 | Glide Classic FLHC |
| Harley-Davidson | 1980 | Glide Classic FLHC-80 |
| Harley-Davidson | 1983 | Glide Classic FLHT |
| Harley-Davidson | 1982–1984 | Police Electra Glide FLH-1200 |
| Harley-Davidson | 1981–1983 | Police Electra Glide FLH-80 |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1979–1980 | Police FLH 80 FLHP-80 |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1981–1982 | Touring Electra Glide Classic FLHC |
| Harley-Davidson | 1979 | Touring Electra Glide Classic FLHC-80 |
| Harley-Davidson | 1983–1984 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1980 | Touring Electra Glide FL-80 |
| Harley-Davidson | 1979–1984 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1981–1984 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Sport FLHS-80 |
| Harley-Davidson | 1983 | Touring Electra Glide Standard FLHT |
FX Shovel 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983–1984 | FX Low Rider FXSB |
| Harley-Davidson | 1984 | FX Super Glide FXE |
| Harley-Davidson | 1977–1980 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1982 | FX Super Glide FXS |
| Harley-Davidson | 1977–1978 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1980 | FX Super Glide FXS-80 |
| Harley-Davidson | 1981 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1980 | FX Wide Glide FXWG-80 |
| Harley-Davidson | 1977 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
| Harley-Davidson | 1980 | Super Glide B80 FXB-80 |
FXR 10 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1989 | FXR Convertible FXRS |
| Harley-Davidson | 1985–1987 | FXR Custom FXRC |
| Harley-Davidson | 1983–1989 | FXR Low Glide FXRS |
| Harley-Davidson | 1987–1989 | FXR Low Rider FXLR |
| Harley-Davidson | 1986–1989 | FXR Sport FXRS-SP |
| Harley-Davidson | 1983–1988 | FXR Super Glide FXR |
| Harley-Davidson | 1986 | FXR Touring FXRD |
| Harley-Davidson | 1984 | FXR Touring FXRDG |
| Harley-Davidson | 1983–1985 | FXR Touring FXRT |
| Harley-Davidson | 1984–1989 | Police Low Rider FXRP |
Softail 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1985 | FX Low Rider FXSB |
| Harley-Davidson | 1985 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1985–1986 | FX Wide Glide FXWG |
| Harley-Davidson | 1987–1989 | Softail Custom FXSTC |
| Harley-Davidson | 1987–1989 | Softail Heritage Classic FLSTC |
| Harley-Davidson | 1986–1989 | Softail Heritage FLST |
| Harley-Davidson | 1984–1989 | Softail Standard FXST |
Touring 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1979–1984 | Tour Glide FLT |
| Harley-Davidson | 1985–1989 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1987 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1981–1989 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1980–1982 | Touring Tour Glide FLT |
| Harley-Davidson | 1983 | Touring Tour Glide FLTD |
