504809 Thrust washer, transmission mainshaft, right side. set
incl. VAT
Chapter members save 12% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 504809
- OEM Reference
- 504809
- Pack Quantity
- Sold as a set
- Category
- Transmission Parts
- VAT Rate
- 20%
About This Product

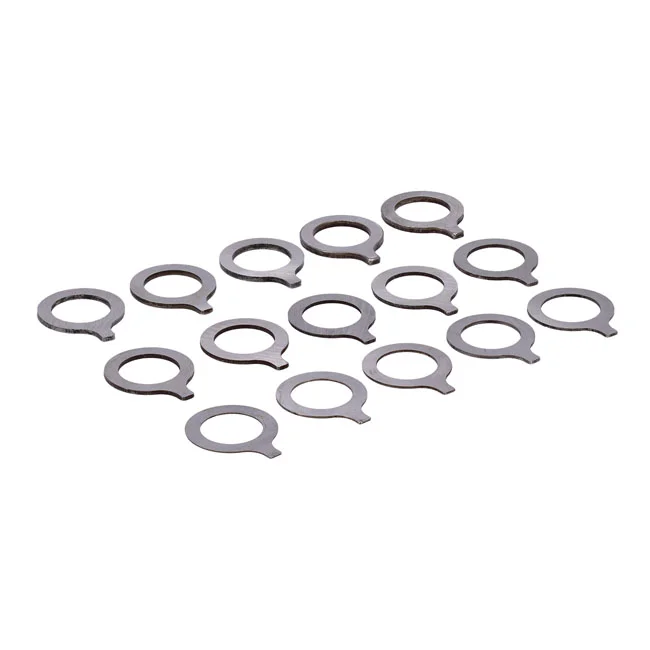

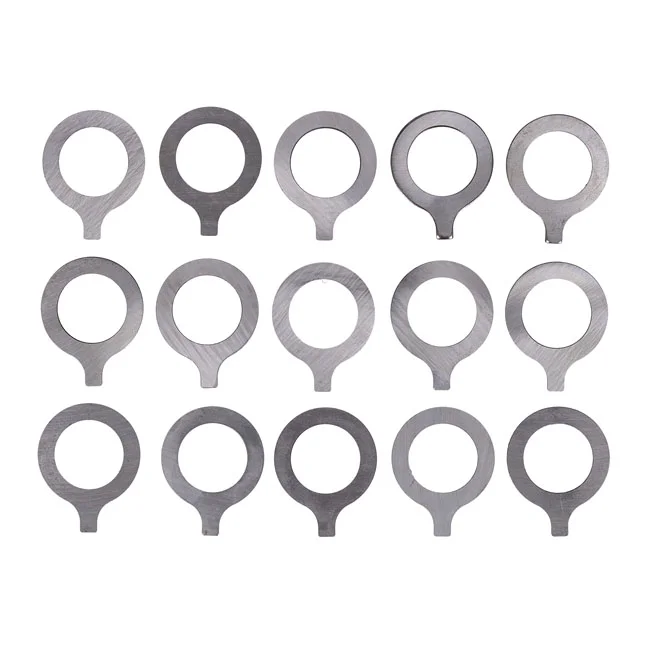

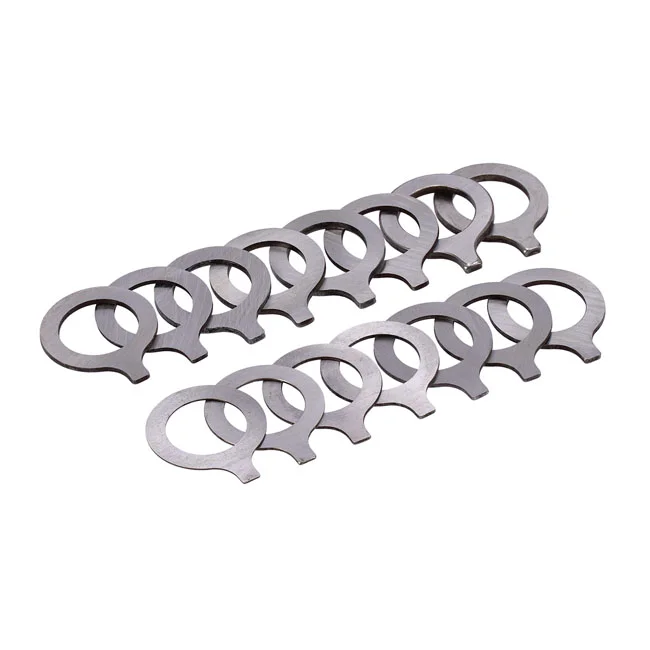

This MCS transmission mainshaft thrust washer set fits the right side of 1952–1956 K and KH, and 1957 to early 1984 XL Sportster models. It contains 15 washers ranging from .030" to .126" in approximately +.005" increments. Outer diameter is 1.500" and inner diameter is 1.000". Select the correct thickness to set mainshaft endplay. Sold as a set.
Manufacturer part number: 504809.
Fitment
21 models52-56 K; KH; 57-E84 XL Sportster
Model K 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1952–1953 | Model K K-750 |
| Harley-Davidson | 1954–1956 | Model K KH-900 |
| Harley-Davidson | 1955 | Model K KHK-900 |
Sportster 18 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975–1976 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1977–1978 | Sportster 1000 XLCR-1000 |
| Harley-Davidson | 1981–1984 | Sportster 1000 XLH |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLH-1000 |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLS-1000 |
| Harley-Davidson | 1977 | Sportster 1000 XLT-1000 |
| Harley-Davidson | 1981–1984 | Sportster Roadster 1000 XLS |
| Harley-Davidson | 1983–1984 | Sportster Roadster 1000 XLX |
| Harley-Davidson | 1980 | Sportster Standard XLH |
| Harley-Davidson | 1975–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1957–1959 | Sportster XL-900 |
| Harley-Davidson | 1958 | Sportster XLC-900 |
| Harley-Davidson | 1973–1975 | Sportster XLCH-1000 |
| Harley-Davidson | 1958–1971 | Sportster XLCH-900 |
| Harley-Davidson | 1972–1975 | Sportster XLH-1000 |
| Harley-Davidson | 1958–1972 | Sportster XLH-900 |
| Harley-Davidson | 1983–1984 | Sportster XR-1000 |
| Harley-Davidson | 1976 | Sportster XR-750 |
