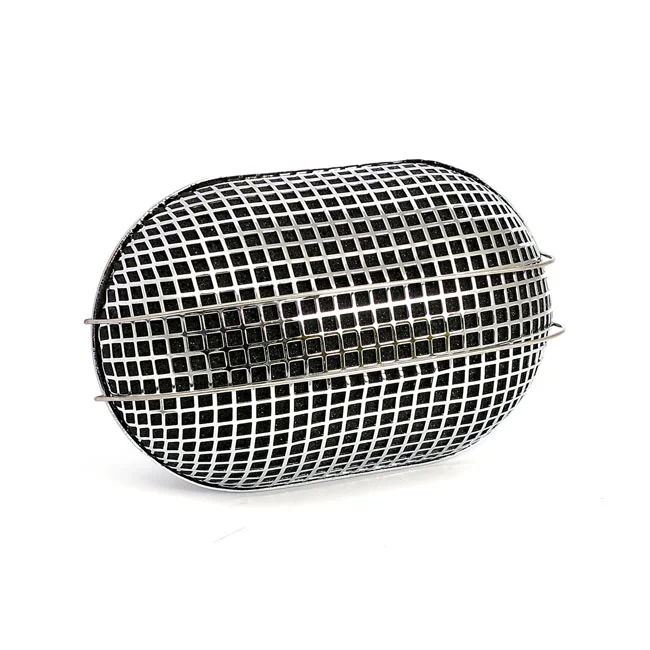

509314 Breather style air cleaner assembly, oval. Chrome
Fits: 66-88 Big Twin; 66-87 XL Sportster.…
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 509314
- OEM Reference
- 509314
- Pack Quantity
- Each
- Category
- Aircleaner Assemblies
- VAT Rate
- 20%
About This Product
This oval breather-style air cleaner assembly brings an authentic high-performance look to your vintage Harley. It features a classic steel mesh design with a chrome finish, measuring approximately 7 inches wide and 4.5 inches high. This assembly is designed to fit 1966 to 1988 Big Twin models and 1966 to 1987 Sportsters equipped with Keihin, Bendix, or Tillotson carburetors. Please note it is not compatible with CV carburetors. A proper air cleaner support bracket and headvent breather kit are required for installation. This unit uses a foam filter element and is listed under MCS part 509314.
Manufacturer part number: 509314.
Fitment
87 models66-88 Big Twin; 66-87 XL Sportster. With Keihin; Bendix and Tillotson carburetor (Excl. CV carburetor)
Cafe Racer 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1978 | Sportster 1000 XLCR-1000 |
Electra Glide 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH 80 FLH-80 |
| Harley-Davidson | 1975–1980 | Electra Glide FLH-1200 |
| Harley-Davidson | 1979–1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1975 | Electra Glide FLHF |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1984 | FLH Police 80 FLH |
| Harley-Davidson | 1979–1980 | Glide Classic FLHC-80 |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1979 | Touring Electra Glide Classic FLHC-80 |
| Harley-Davidson | 1978–1980 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Sport FLHS-80 |
FXR 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1985–1987 | FXR Custom FXRC |
| Harley-Davidson | 1982–1988 | FXR Low Glide FXRS |
| Harley-Davidson | 1988 | FXR Low Rider FXLR |
| Harley-Davidson | 1986–1988 | FXR Sport FXRS-SP |
| Harley-Davidson | 1982–1988 | FXR Super Glide FXR |
| Harley-Davidson | 1986 | FXR Touring FXRD |
| Harley-Davidson | 1984 | FXR Touring FXRDG |
| Harley-Davidson | 1983–1988 | FXR Touring FXRT |
FXR Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1984–1988 | Police Low Rider FXRP |
Low Rider 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1979 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
Police 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975 | Glide Police FL |
Police Electra Glide 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Police FLH 80 FLHP-80 |
Roadster 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Sportster 1000 XLS-1000 |
Softail 12 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1983–1985 | FX Low Rider FXSB |
| Harley-Davidson | 1981–1985 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1981–1984 | FX Super Glide FXE |
| Harley-Davidson | 1981–1982 | FX Super Glide FXS |
| Harley-Davidson | 1981–1986 | FX Wide Glide FXWG |
| Harley-Davidson | 1987–1988 | Softail Custom FXSTC |
| Harley-Davidson | 1988 | Softail Heritage Classic FLSTC |
| Harley-Davidson | 1986–1988 | Softail Heritage FLST |
| Harley-Davidson | 1988 | Softail Springer FXSTS |
| Harley-Davidson | 1984–1988 | Softail Standard FXST |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
Sportster 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975–1980 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1981–1985 | Sportster 1000 XLH |
| Harley-Davidson | 1979–1980 | Sportster 1000 XLH-1000 |
| Harley-Davidson | 1986–1987 | Sportster 1100 XLH |
| Harley-Davidson | 1987 | Sportster 883 Hugger XL883HUG |
| Harley-Davidson | 1986–1987 | Sportster 883 XL883 |
| Harley-Davidson | 1981–1985 | Sportster Roadster 1000 XLS |
| Harley-Davidson | 1983–1985 | Sportster Roadster 1000 XLX |
| Harley-Davidson | 1975–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1973–1979 | Sportster XLCH-1000 |
| Harley-Davidson | 1966–1972 | Sportster XLCH-900 |
| Harley-Davidson | 1972–1975 | Sportster XLH-1000 |
| Harley-Davidson | 1966–1972 | Sportster XLH-900 |
| Harley-Davidson | 1983–1984 | Sportster XR-1000 |
Super Glide 4 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1976–1979 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1976–1978 | Super Glide 1200 FX-1200 |
Tour Glide 3 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1979–1980 | Tour Glide FLT |
| Harley-Davidson | 1980 | Touring Tour Glide FLT |
| Harley-Davidson | 1983 | Touring Tour Glide FLTD |
Touring 22 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1970–1974 | Electra Glide FL-1200 |
| Harley-Davidson | 1966–1969 | Electra Glide FLB-1200 |
| Harley-Davidson | 1966–1969 | Electra Glide FLFB-1200 |
| Harley-Davidson | 1981–1983 | Electra Glide FLH |
| Harley-Davidson | 1970–1974 | Electra Glide FLH-1200 |
| Harley-Davidson | 1966–1969 | Electra Glide FLHB-1200 |
| Harley-Davidson | 1971–1975 | Electra Glide FLHF-1200 |
| Harley-Davidson | 1966–1969 | Electra Glide FLHFB-1200 |
| Harley-Davidson | 1981 | Electra Glide FLHS |
| Harley-Davidson | 1983–1984 | Electra Glide FLHT |
| Harley-Davidson | 1983–1984 | Glide Classic FLHT |
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1971–1975 | Super Glide FX-1200 |
| Harley-Davidson | 1973–1975 | Super Glide FXE-1200 |
| Harley-Davidson | 1982–1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1981–1984 | Tour Glide FLT |
| Harley-Davidson | 1983–1988 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1984 | Touring Electra Glide FLH |
| Harley-Davidson | 1981–1988 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1983–1988 | Touring Electra Glide Standard FLHT |
| Harley-Davidson | 1980–1988 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1981–1983 | Touring Tour Glide FLT |
XLT Touring 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977 | Sportster 1000 XLT-1000 |
XR-750 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1976–1979 | Sportster XR-750 |
74CI (1200CC) OHV Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978 | Electra Glide FLH |
