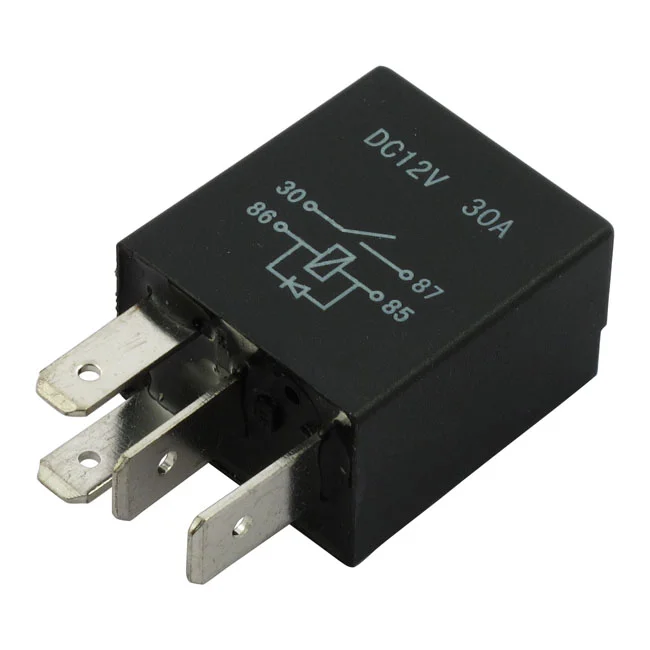

516289 System relay (with diode)
Fits: 01-11 Big Twin (Excl. 07-11 FLT/Tou…
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 516289
- OEM Reference
- 31511-01B
- Pack Quantity
- Each
- Category
- Starter Relays
- VAT Rate
- 20%
About This Product
This MCS system relay is equipped with a diode and fits 2001 to 2011 Big Twin models, excluding 2007 to 2011 FLT Touring models. It is a reliable replacement for OEM 31511-01B. System relays are critical for powering up your fuel pump and ignition circuits, so a failure here means you aren't going anywhere. This unit is built to handle the electrical demands of fuel-injected Harleys, providing a stable connection and protecting the ECM from back-EMF spikes. Keeping a spare in your tool kit is never a bad idea for those long road trips, ensuring you can troubleshoot power issues on the fly.
Manufacturer part number: 516289.
Fitment
86 models01-11 Big Twin (Excl. 07-11 FLT/Touring)
CVO/Custom 23 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2007 | CVO Dyna FXDSE |
| Harley-Davidson | 2008 | CVO Dyna FXDSE2 |
| Harley-Davidson | 2004 | CVO Electra Glide FLHTCSE |
| Harley-Davidson | 2005 | CVO Electra Glide FLHTCSE2 |
| Harley-Davidson | 2009 | CVO Fat Bob (HDI) FXDFSE |
| Harley-Davidson | 2009 | CVO Fat Bob FXDFSE |
| Harley-Davidson | 2010 | CVO Fat Bob FXDFSE2 |
| Harley-Davidson | 2005 | CVO Fat Boy FLSTFSE |
| Harley-Davidson | 2006 | CVO Fat Boy FLSTFSE2 |
| Harley-Davidson | 2007 | CVO Road King FLHRSE3 |
| Harley-Davidson | 2002 | CVO Road King FLHRSEI |
| Harley-Davidson | 2003 | CVO Road King FLHRSEI2 |
| Harley-Davidson | 2010 | CVO Softail Convertible FLSTSE |
| Harley-Davidson | 2003 | CVO Softail Deuce FXSTDSE |
| Harley-Davidson | 2004 | CVO Softail Deuce FXSTDSE2 |
| Harley-Davidson | 2007 | CVO Softail Springer FXSTSSE |
| Harley-Davidson | 2008 | CVO Softail Springer FXSTSSE2 |
| Harley-Davidson | 2009 | CVO Softail Springer FXSTSSE3 |
| Harley-Davidson | 2006 | CVO Ultra Classic FLHTCUSE |
| Harley-Davidson | 2007 | CVO Ultra Classic FLHTCUSE2 |
| Harley-Davidson | 2006 | CVO V-Rod Destroyer VRXSE |
| Harley-Davidson | 2005 | CVO V-Rod VRSCSE |
| Harley-Davidson | 2006 | CVO V-Rod VRSCSE2 |
Dyna 14 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2006 | Dyna 35th Anv Super Glide FXD35 |
| Harley-Davidson | 2008–2011 | Dyna Fat Bob FXDF |
| Harley-Davidson | 2007–2011 | Dyna Low Rider FXDL |
| Harley-Davidson | 2004–2006 | Dyna Low Rider FXDLI |
| Harley-Davidson | 2007–2011 | Dyna Street Bob FXDB |
| Harley-Davidson | 2006 | Dyna Street Bob FXDBI |
| Harley-Davidson | 2007–2011 | Dyna Super Glide Custom FXDC |
| Harley-Davidson | 2005–2006 | Dyna Super Glide Custom FXDCI |
| Harley-Davidson | 2007–2010 | Dyna Super Glide FXD |
| Harley-Davidson | 2004–2006 | Dyna Super Glide FXDI |
| Harley-Davidson | 2004–2005 | Dyna Super Glide Sport FXDXI |
| Harley-Davidson | 2008 | Dyna Wide Glide 105th Anv FXDWG |
| Harley-Davidson | 2007–2011 | Dyna Wide Glide FXDWG |
| Harley-Davidson | 2004–2006 | Dyna Wide Glide FXDWGI |
Police 6 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2007 | Electra Glide Standard Police FLHTP |
| Harley-Davidson | 2002–2006 | Electra Glide Standard Police FLHTPI |
| Harley-Davidson | 2002–2006 | Road King Police Escort FLHPEI |
| Harley-Davidson | 2007 | Road King Police FLHP |
| Harley-Davidson | 2007 | Road King Police FLHPE |
| Harley-Davidson | 2002–2006 | Road King Police FLHPI |
Softail 23 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2008–2010 | Cross Bones FLSTSB |
| Harley-Davidson | 2007–2010 | Fat Boy FLSTF |
| Harley-Davidson | 2001–2006 | Fat Boy FLSTFI |
| Harley-Davidson | 2010 | Fat Boy Lo FLSTFB |
| Harley-Davidson | 2007–2010 | Heritage Softail Classic FLSTC |
| Harley-Davidson | 2001–2006 | Heritage Softail Classic FLSTCI |
| Harley-Davidson | 2008–2010 | Heritage Softail FLST |
| Harley-Davidson | 2006 | Heritage Softail FLSTI |
| Harley-Davidson | 2001–2003 | Heritage Springer FLSTSI |
| Harley-Davidson | 2007–2009 | Night Train FXSTB |
| Harley-Davidson | 2001–2006 | Night Train FXSTBI |
| Harley-Davidson | 2008–2010 | Rocker C FXCWC |
| Harley-Davidson | 2008–2009 | Rocker FXCW |
| Harley-Davidson | 2007–2010 | Softail Custom FXSTC |
| Harley-Davidson | 2007–2010 | Softail Deluxe FLSTN |
| Harley-Davidson | 2005–2006 | Softail Deluxe FLSTNI |
| Harley-Davidson | 2007 | Softail Deuce FXSTD |
| Harley-Davidson | 2001–2006 | Softail Deuce FXSTDI |
| Harley-Davidson | 2007–2010 | Softail Standard FXST |
| Harley-Davidson | 2001–2006 | Softail Standard FXSTI |
| Harley-Davidson | 2007 | Springer Classic FLSTSC |
| Harley-Davidson | 2005–2006 | Springer Classic FLSTSCI |
| Harley-Davidson | 2001–2006 | Springer Softail FXSTSI |
Touring 16 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2007 | Electra Glide Classic FLHTC |
| Harley-Davidson | 2002–2006 | Electra Glide Classic FLHTCI |
| Harley-Davidson | 2007 | Electra Glide Standard FLHT |
| Harley-Davidson | 2003–2006 | Electra Glide Standard FLHTI |
| Harley-Davidson | 2007 | Road Glide FLTR |
| Harley-Davidson | 2002–2006 | Road Glide FLTRI |
| Harley-Davidson | 2007 | Road King Classic FLHRC |
| Harley-Davidson | 2002–2006 | Road King Classic FLHRCI |
| Harley-Davidson | 2006–2007 | Road King Custom FLHRS |
| Harley-Davidson | 2004–2006 | Road King Custom FLHRSI |
| Harley-Davidson | 2006–2007 | Road King FLHR |
| Harley-Davidson | 2002–2006 | Road King FLHRI |
| Harley-Davidson | 2007 | Street Glide FLHX |
| Harley-Davidson | 2006 | Street Glide FLHXI |
| Harley-Davidson | 2007 | Ultra Classic FLHTCU |
| Harley-Davidson | 2002–2006 | Ultra Classic FLHTCUI |
VRSC 4 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 2002–2006 | VRSCA V-Rod VRSCA |
| Harley-Davidson | 2004–2005 | VRSCB V-Rod VRSCB |
| Harley-Davidson | 2006 | VRSCD Night Rod VRSCD |
| Harley-Davidson | 2006–2007 | VRSCR Street Rod VRSCR |
