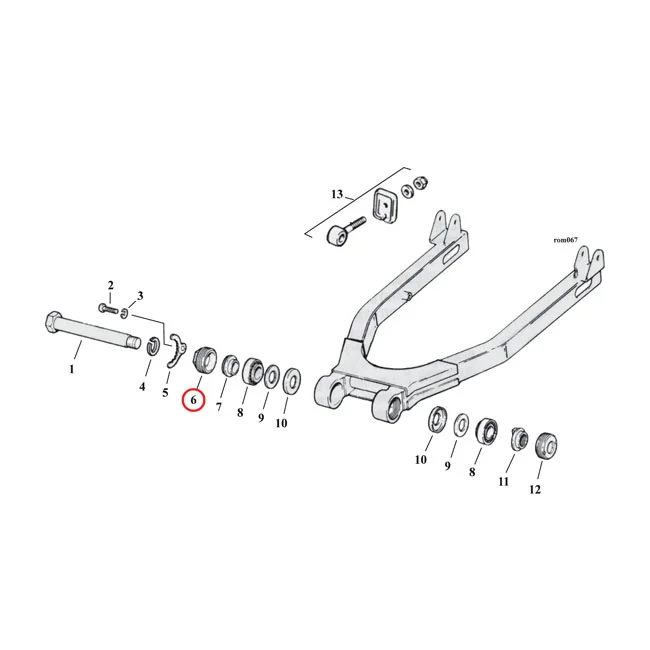

947094 Lock nut swingarm bearing. right
incl. VAT
Chapter members save 15% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- MCS
- Part Number
- 947094
- OEM Reference
- 47515-52
- Pack Quantity
- Each
- Category
- Swingarms Assy
- VAT Rate
- 20%
About This Product
MCS right-side swingarm bearing lock nut. Fits 1954 to early 1974 K-model and XL Sportster. Replaces OEM 47515-52 and 947094. Only one used per application. This fastener secures the swingarm bearing assembly and sets clamping load on the pivot. Torque it to spec and check it periodically. These early machines vibrate and the pivot must stay put.
Manufacturer part number: 947094.
Fitment
12 models54-E74 K; XL Sportster1 used
Model K 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1955–1956 | Model K KH-900 |
Sportster 7 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1975–1978 | Sportster 1000 XLCH-1000 |
| Harley-Davidson | 1975–1978 | Sportster Standard XLH-1000 |
| Harley-Davidson | 1957–1959 | Sportster XL-900 |
| Harley-Davidson | 1973–1979 | Sportster XLCH-1000 |
| Harley-Davidson | 1959–1972 | Sportster XLCH-900 |
| Harley-Davidson | 1974 | Sportster XLH-1000 |
| Harley-Davidson | 1960–1972 | Sportster XLH-900 |
Touring 2 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1959 | Duo Glide FLHF-1200 |
| Harley-Davidson | 1954 | Model K KH-900 |
XLT Touring 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1977–1980 | Sportster 1000 XLT-1000 |
55CI (883CC) OHV 4 Cycle-Twin 1 model
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1980 | Sportster Standard XLH |
