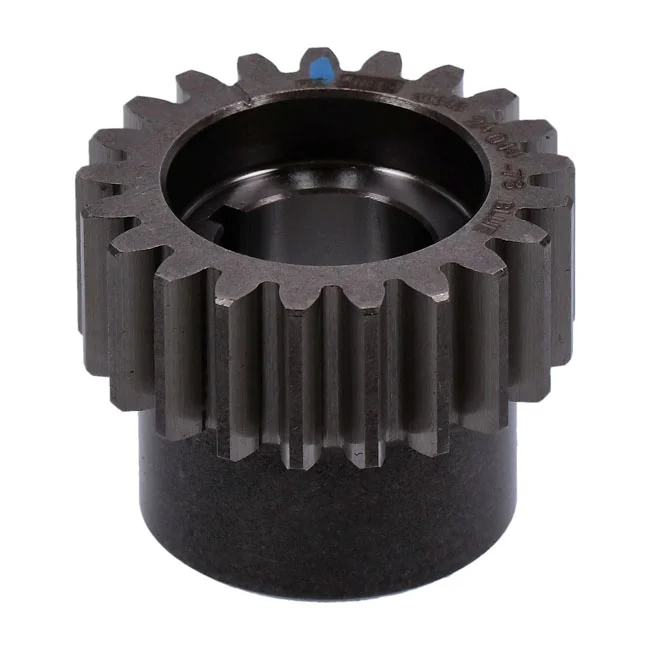

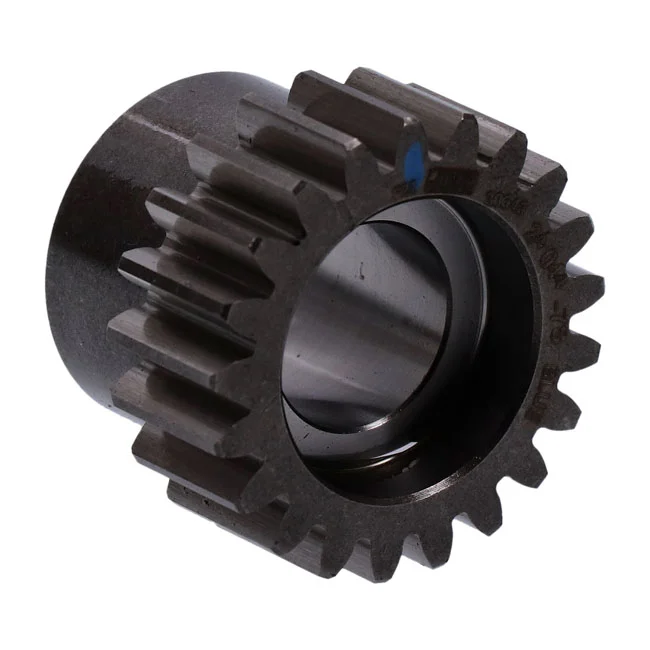

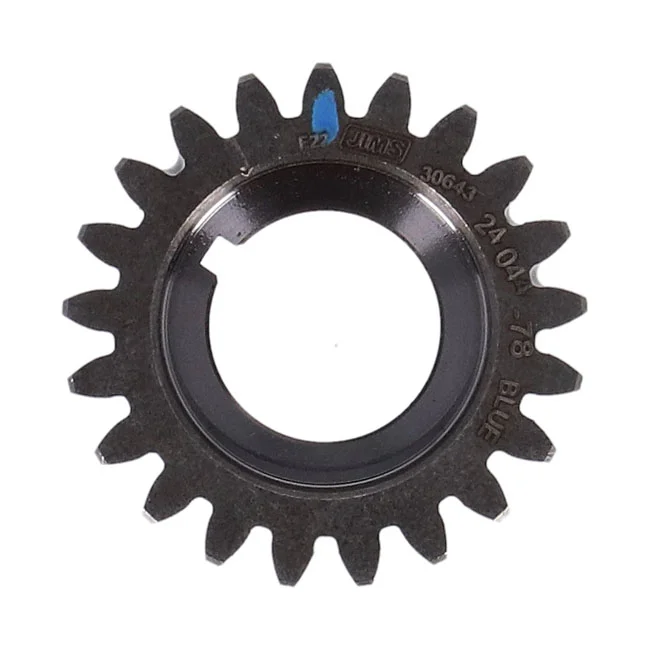

24044-78 Jims Pinion gear L77-89. Blue for Harley-Davidson
incl. VAT
Chapter members save 11% · Sign in for member pricing
Estimated delivery: 3–15 working days
Authorised
Iron City Dealer
14-Day Returns
Easy & hassle-free
Secure Checkout
256-bit encryption
Free UK Delivery
On orders over £100
Specifications
- Brand
- Jims
- Part Number
- 24044-78
- OEM Reference
- 24040-78
- Pack Quantity
- Each
- Category
- Pinion Gears
- VAT Rate
- 20%
About This Product
JIMS blue pinion gear. This is an average-sized option. It fits late 1977 to 1989 Big Twin engines. It replaces OEM number 24044-78. The colour-coded range covers OEM numbers 24040-78 through 24046-78. Machined from American aerospace tool steel. You need the correct colour code to achieve proper cam gear lash. Check the fit before you torque the cam cover down. Wrong size makes noise and wears the valve train prematurely.
Manufacturer part number: 24044-78.
Fitment
59 modelsL77-89 Big Twin(average)
FL Shovel 21 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1978–1983 | Electra Glide FLH |
| Harley-Davidson | 1977–1980 | Electra Glide FLH-1200 |
| Harley-Davidson | 1980 | Electra Glide FLH-80 |
| Harley-Davidson | 1981 | Electra Glide FLHS |
| Harley-Davidson | 1977 | Electra Glide FLHS-1200 |
| Harley-Davidson | 1980 | Electra Glide FLHS-80 |
| Harley-Davidson | 1981 | Glide Classic FLHC |
| Harley-Davidson | 1979 | Glide Classic FLHC-80 |
| Harley-Davidson | 1983 | Glide Classic FLHT |
| Harley-Davidson | 1982–1984 | Police Electra Glide FLH-1200 |
| Harley-Davidson | 1981–1983 | Police Electra Glide FLH-80 |
| Harley-Davidson | 1983 | Police FLH |
| Harley-Davidson | 1979–1980 | Police FLH-1200 FLH-1200 |
| Harley-Davidson | 1982 | Touring Electra Glide Classic FLHC |
| Harley-Davidson | 1983–1984 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1984 | Touring Electra Glide FLH |
| Harley-Davidson | 1978–1984 | Touring Electra Glide FLH-80 |
| Harley-Davidson | 1981–1984 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1977 | Touring Electra Glide Sport FLHS-1200 |
| Harley-Davidson | 1980 | Touring Electra Glide Sport FLHS-80 |
| Harley-Davidson | 1983 | Touring Electra Glide Standard FLHT |
FX Shovel 12 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1984 | FX Low Rider FXSB |
| Harley-Davidson | 1984 | FX Super Glide FXE |
| Harley-Davidson | 1977–1980 | FX Super Glide FXE-1200 |
| Harley-Davidson | 1977 | FX Super Glide FXS-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide FXS-80 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-1200 |
| Harley-Davidson | 1979–1980 | FX Super Glide Fat Bob FXEF-80 |
| Harley-Davidson | 1981–1984 | FX Wide Glide FXWG |
| Harley-Davidson | 1980 | FX Wide Glide FXWG-80 |
| Harley-Davidson | 1977–1978 | Super Glide 1200 FX-1200 |
| Harley-Davidson | 1981–1982 | Super Glide B80 FXB |
| Harley-Davidson | 1980 | Super Glide B80 FXB-80 |
FXR 9 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1985–1987 | FXR Custom FXRC |
| Harley-Davidson | 1982–1988 | FXR Low Glide FXRS |
| Harley-Davidson | 1987–1989 | FXR Low Rider FXLR |
| Harley-Davidson | 1986–1989 | FXR Sport FXRS-SP |
| Harley-Davidson | 1983–1989 | FXR Super Glide FXR |
| Harley-Davidson | 1986 | FXR Touring FXRD |
| Harley-Davidson | 1984 | FXR Touring FXRDG |
| Harley-Davidson | 1983–1988 | FXR Touring FXRT |
| Harley-Davidson | 1984–1989 | Police Low Rider FXRP |
Softail 9 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1983 | Dyna Glide Glide Custom FXDG |
| Harley-Davidson | 1985 | FX Low Rider FXSB |
| Harley-Davidson | 1985 | FX Super Glide Fat Bob FXEF |
| Harley-Davidson | 1986 | FX Wide Glide FXWG |
| Harley-Davidson | 1987–1989 | Softail Custom FXSTC |
| Harley-Davidson | 1987–1989 | Softail Heritage Classic FLSTC |
| Harley-Davidson | 1986–1989 | Softail Heritage FLST |
| Harley-Davidson | 1988–1989 | Softail Springer FXSTS |
| Harley-Davidson | 1984–1985 | Softail Standard FXST |
Touring 8 models
| Brand | Year | Model |
|---|---|---|
| Harley-Davidson | 1981 | Glide Classic FLTC |
| Harley-Davidson | 1984 | Tour Glide Classic FLT |
| Harley-Davidson | 1979–1984 | Tour Glide FLT |
| Harley-Davidson | 1987–1988 | Touring Electra Glide Classic FLHTC |
| Harley-Davidson | 1987–1988 | Touring Electra Glide Sport FLHS |
| Harley-Davidson | 1980–1987 | Touring Tour Glide Classic FLTC |
| Harley-Davidson | 1989 | Touring Tour Glide Classic Ultra FLTCU |
| Harley-Davidson | 1981–1983 | Touring Tour Glide FLT |
